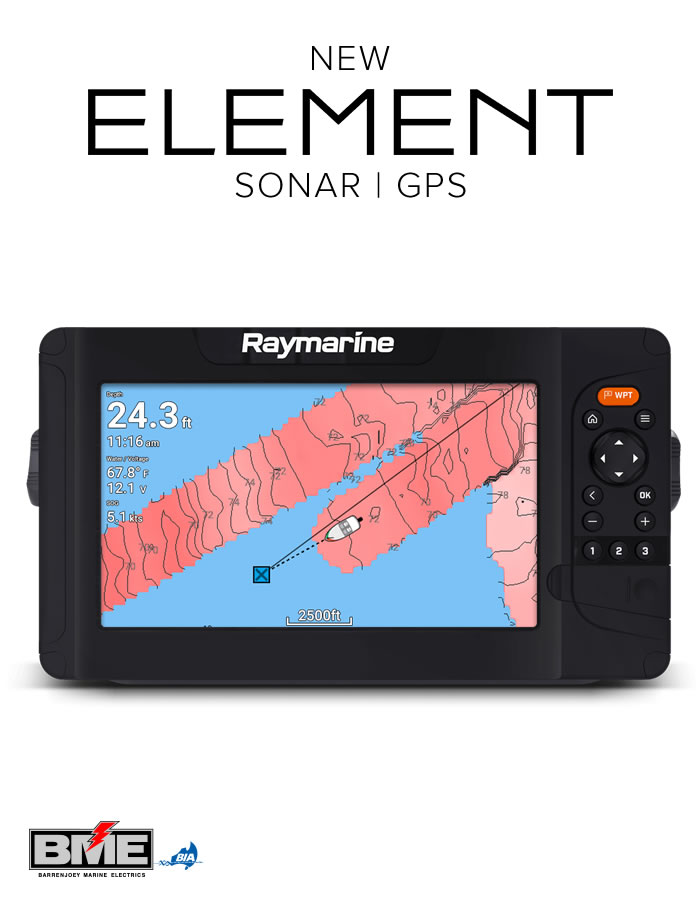

Raymarine Element Sonar / GPS Fishfinder & Navigational Display
The Raymarine Element Sonar GPS Fishfinder delivering the sharpest view of the underwater world, using Raymarine Element’s HyperVision™ 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity. Features Bright and Rugged
Sunlight viewable displays with integrated GPS/GNSS receiver.
Element Features | Raymarine – A Brand by FLIRSuperior HyperVision™
1.2 megahertz CHIRP sonar technology delivers much higher resolution imaging compared to conventional side and down scanning sonars.
RealVision™ 3D Built-In
Accurately identify the location of ledges, channel beds, and other contour changes.
Element Features | Raymarine – A Brand by FLIRFast Quad-Core Processor
For instantaneous chart re-draw and sharp 3D imaging.
All-in-one Transducer
Combines HyperVision, DownVision, SideVision, RealVision, and conventional CHIRP sonar channels into one simple installation.
Turn Up the Resolution with HyperVision™
HyperVision uses super high frequencies (1.2 megahertz) and CHIRP technology to bring a new level of precision imaging to DownVision, SideVision and RealVision 3D
1.2 megahertz HyperVision mode is optimized for super high-resolution imagery up to 100’ (30 meters)
Switch to standard 350 kHz CHIRP sonar for longer range, high-resolution imaging, and ranges up to 600’ (180 meters)
Element’s advanced CHIRP sonar also operates in the high-frequency 200kHz range for fish targeting, high-speed bottom tracking, and depths up to 900ft

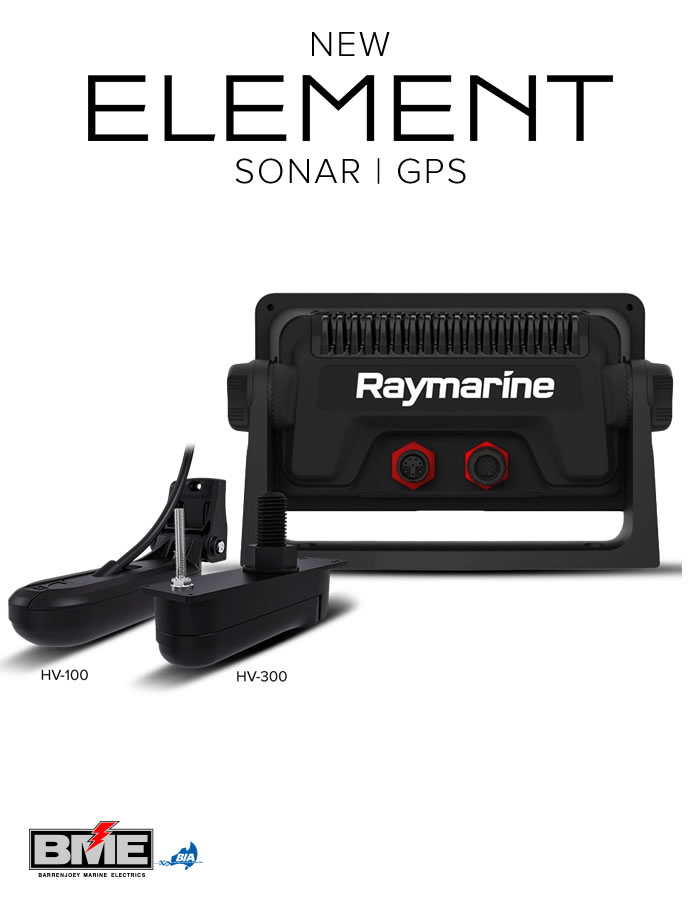

HyperVision™ CHIRP Transducers
The all-in-one design of Element’s HyperVision transducers make them compact and easy to install. Raymarine offers convenient transom mount and thru-hull options to fit any boat.
Raymarine Element Sonar / GPS Specifications
| MODEL | Element 7 HV | Element 9 HV | Element 12 HV |
General Specifications
| Display Size | 7.0″” Optically Bonded LCD | 9.0″” Optically Bonded LCD | 12.0″” Optically Bonded LCD |
| Display Resolution | 800 x 480 WVGA | 1280 x 800 WXGA | |
| Display Type | Non-Touch | ||
| Brightness | 1,500 nits | ||
| Viewing Angle | Top 50° / Bottom 60° / Left 70° / Right 70° | Top 89° / Bottom 89° / Left 89° / Right 89° |
Physical Specifications
| Overall Dimensions W x H x D | 240 x 135 62mm (9.5 x 5.3 x 2.4 inches) | 287 x 161 x 62mm (11.3 x 6.3 x 2.4 inches) | 357 x 215 x 62mm (14.1 x 8.5 x 2.4 inches) | |
| Product Weight (lbs) | 3.0 | 5.0 | 6.5 | |
| Water Ingress Protection | IPx6 and IPx7 | |||
| Operating Temperature Range | -25°C to + 55°C (-13°F to 131°F) | |||
| Storage temperature range | -30°C to +70°C (-22°F to 158°F) |
Power Specifications
| Voltage | 12V DC (8V to 16V DC) | ||
| Power Consumption (max 12V DC) | 15 Watts | 20 Watts | 25 Watts |
Sensors Specifications
| GNSS / GPS | Built-in GNSS Receiver: GPS/GLONASS |
| Sonar Type (Built-in) | Built-in CHIRP Sonar, DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision™ 3D (Standard and Hyper) |
| Sonar Connection | 15 pin HyperVision™ type connector |
| Sonar Depth | CHIRP Sonar = 274m (900 feet) DownVision™ Standard = 183m (600 feet) | DownVision™ Hyper = 30m (100 feet) SideVision™ Standard = 91m (300 feet) | SideVision™ Hyper = 30m (100 feet) RealVision™ 3D Standard = 91m (300 feet) | RealVision™ 3D Hyper = 30m (100 feet) |
Networking Specifications
| Ethernet | N/A |
| NMEA0183 | N/A |
| NMEA2000 | 1 x NMEA2000 port (DeviceNet microC) |
| Supported NMEA2000 Networking | INPUT: NMEA2000 Compatible Engines (Max 2) | NMEA2000 Compatible Tank Sensors (Max 4) | Heading Sensor (for Chart Stabilization) OUTPUT: GPS (for VHF Distress and DSC) |
| SeaTalkng | Requires A06045 DeviceNet female (F) adapter cable – 400mm |
| USB | N/A |
| Wi-Fi | WiFi – 802.11 b / g / n |
| BlueTooth | Bluetooth 4.0 + Low Energy + Power Class 1.5 |
Other Specifications
| Cartography | Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store. |
| Tides & Currents | Requires LightHouse LNC2, Navionics or C-MAP |
| Waypoint / Routes / Tracks | 10,000 wpts / 200 wpt groups / 150 rts – 250 wpt max / 16 tracks – 10,000 max trk pts |
| Internal Memory | 8GB Solid State |
| External Memory | 1 x microSD slots – microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) |
