Hatteland Series X Multifunction Display

$4,200.00$18,995.25

All Hatteland Series X Display sizes are available with state of the art PC technology integrated, designed and built for type approved maritime systems.

Clear
Description

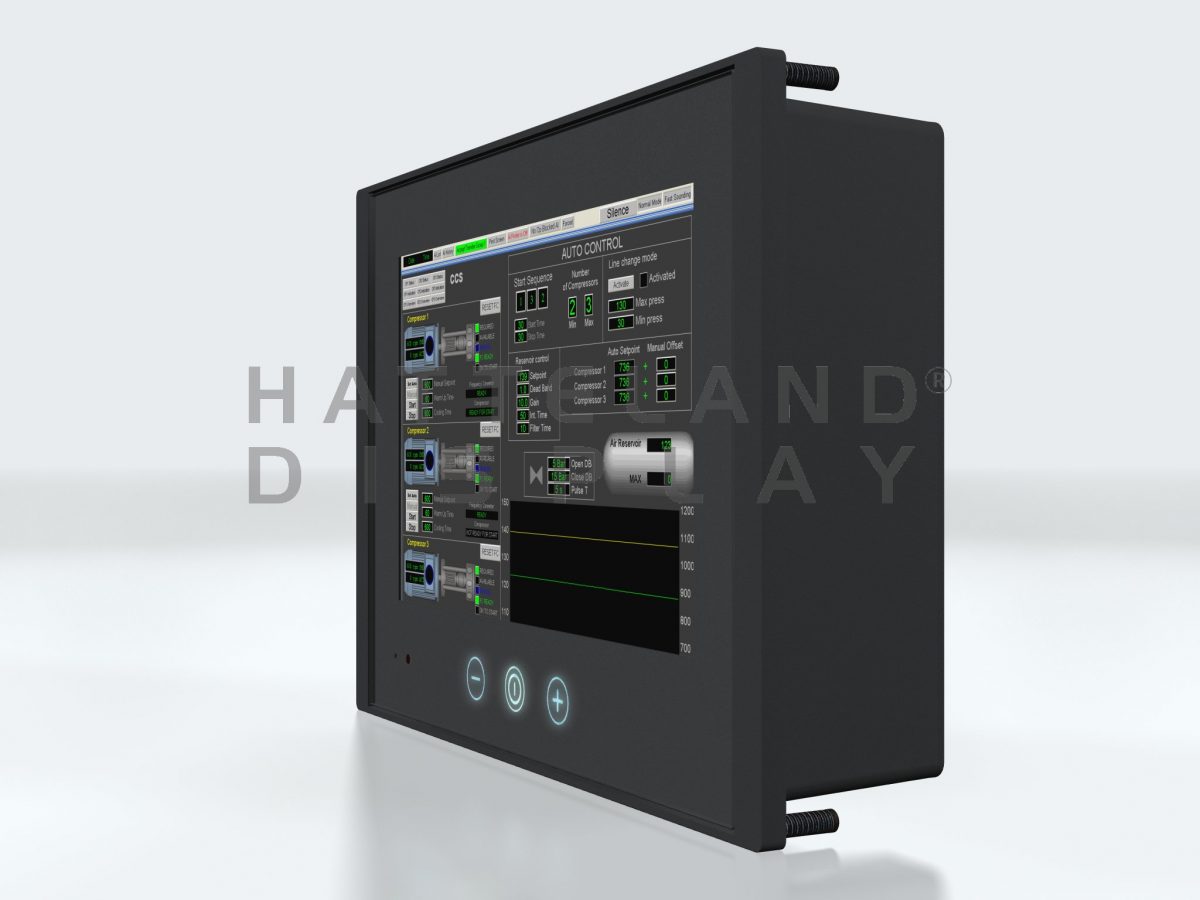

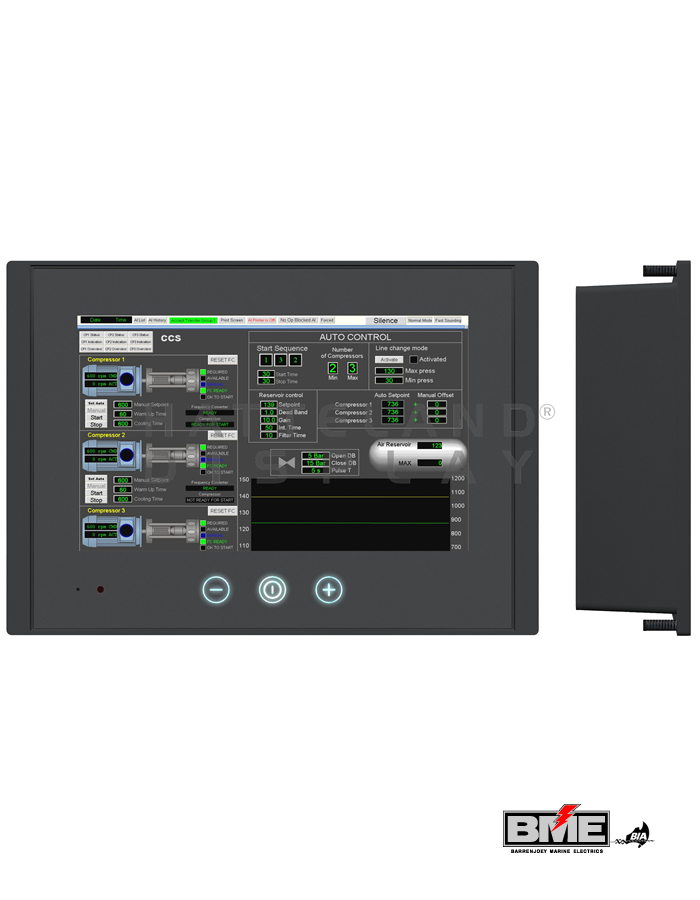

Hatteland Series X Multifunction Display

As a leading manufacturer of display and computer hardware for the maritime segment, Hatteland Technology continuously gauges and responds to market needs. Our commitment to develop specialized products for a multitude of onboard ship systems continues, and with that the introduction now of a brand new product range called, Hatteland Series X Multifunction Display.

With cast aluminium, compact (IP22) and sleek by design chassis, the units from this new range can be desk mount or console integrated. The design is modular, allowing for common modules to be used in various models and combinations. Together these design features bring about a range perfectly in synch to market cost expectations – along with that, the performance and type approval always expected in all Hatteland Technology products.

Hatteland Series X Multifunction Display sizes are available in display or panel computer formats, as well as various performance specifications to choose from. There are standard base models available which are listed on out internet page.

Features

Hatteland Series X Multifunction Display Features

  • IP22 / IP66
  • MULTITOUCH
  • TYPE APPROVED
  • ECDIS COMPLIANT
  • SUPERIOR BONDING TECHNOLOGY
  • MODULE BASED, TAILOR-MADE SYSTEMS MADE EASY!
  • GLASS DISPLAY CONTROL™, SOLID STATE MENU SYSTEM
  • SUNLIGHT READABLE / HIGH BRIGHT VERSIONS AVAILABLE

Hatteland Series X Multifunction Display

Type Number:
HD 08T21 STD-xxx-Fxxx
TFT Technology:
LED Backlight Technology, TTL Interface, a-si TFT Active Matrix,
Widescreen
Viewable Size and Active Area:
8.0 inch – 173.40 [6.83”] (H) x 104.40 [4.11”] (V) mm [inch]
Native Resolution and Pixel Pitch:
800 x 480 (WVGA) – 0.2168 (H) x 0.2168 (V) mm
Aspect Ratio and Response Time:
5:3 – 5/11ms (typ) (Tr/Tf)
Light Intensity and Contrast Ratio:
600 cd/m² (typ) – 600:1 (typ)
View Angle and Max Colors:
70 deg. (up/down) / 60 deg. (left/right) – 16.7 million
Optimal Resolution and Hz:
800 x 480 @ 60 Hz
Detectable Resolutions:
800 x 480
Composite Video Input(s):
None
Supported Video Signals:
None
Product Features:
Projected Capacitive Technology (PCTouch) MULTITOUCH,
Dimmable 0-100%, Buzzer
Power Specifications and Consumption:
2 x 24VDC, Galvanic Isolated, Automatic Switch <> sources
20W (typ) – 30W (max)
User Controls and Activity:
Glass Display Control™ (GDC) IP66 with:
Power On/Off, Brightness Control (-/+), Light Sensor (not visible),
Programmable Alarm LED, Buzzer (not visible)
Connectors:
• DVI IN: 1 x DVI-I 29P (female) or VGA IN via Adapter
• Touchscreen: 1 x USB Type B (female). Use USB2.0 (<5m) port.
• DC Power IN: 2 x 2-pin Terminal Block 5.08
Product Dimensions and Weight:
W:236.00 [9.29”] x H:166.00 [6.54”] x D:51.00 [2.01”] mm [inch]
4 x M4 VESA mounting 75x75mm, Max 8mm deep
Built-in Console mounting 4 x M5x15mm screws
1.7kg / 3.7lbs
Product Carton Size and Weight:
L:320.00 [12.60”] x W:180.00 [7.09”] x H:320.00 [12.60”] mm [inch]
2.5kg / 5.5lbs
Factory Options:
• Optical Bonding Technology
Accessories:
• HD WBK SX1-A1: 1 x Wallmount Box, not EN60945 Tested
Capabilities / Prepared for:
N/A
Operating Temperature:
-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:
-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating:
Protection: IP66 front – IP20 rear (EN60529)
Compass Safe Distance:
Standard: 45.00 [17.72”] – Steering: 30.00 [11.81”] cm [inch]
Type Approval, Testing and Certificates:
IEC 60945 4th (EN 60945:2002), IACS E10,
NK – Nippon Kaiji Kyokai, GL – Germanischer Lloyd,
DNV – Det Norske Veritas, ABS – American Bureau of Shipping,
BV – Bureau Veritas, CCS – China Classification Society,
LRS – Lloyd’s Register, EU-RO-MR – Mutual Recognition

Specifications last updated: August 08, 2018 – 10:49
