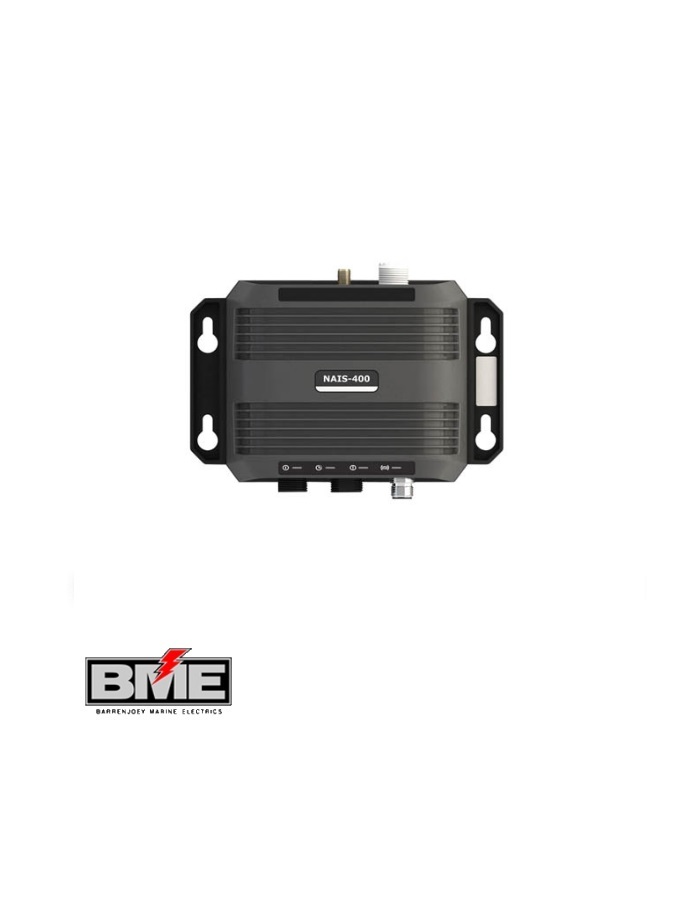

Compact in size, lightweight, fully waterproof, with low power draw and featuring multiple connections, the NAIS-400 is ideal for networking with any NSS, NSE or NSO chartplotter / multifunction display and Simrad RS VHF system.
The NAIS-400 ensures that you are seen and can see on the water by sending a signal to other vessels with your navigational data, whilst you receive data from other vessels. This allows you to plan any necessary avoidance manoeuvres well in advance.
Features
- Class-B Approved
- Send & Receive
- Integrated Solution
- Multiple Networking Connections
- Waterproof
- Lightweight
- Low Power Consumption
Simrad NAIS 400 AIS Specifications
- Connectors: VHF antenna connector (SO-239), External GPS Antenna (SMA), USB type Mini-B plug, NMEA 2000 standard connector, 12 way power input/NMEA 0813/External switch
- NMEA 0183 Interface: 38400 k Baud output, 4800 k Baud input
- Power Consumption: 170mA at 12 VDC
- Power Supply (Supply Voltage): 9.6 – 31.2 VDC
- Waterproof Standard/rating: IPx7
- Product Width: 100mm
- Product Height: 42mm
- Operating Temperature: -25°C to +55°C
- GPS Receiver Channels: 50
- Transmitter Power Output: 33dBm +/- 1.5dB
