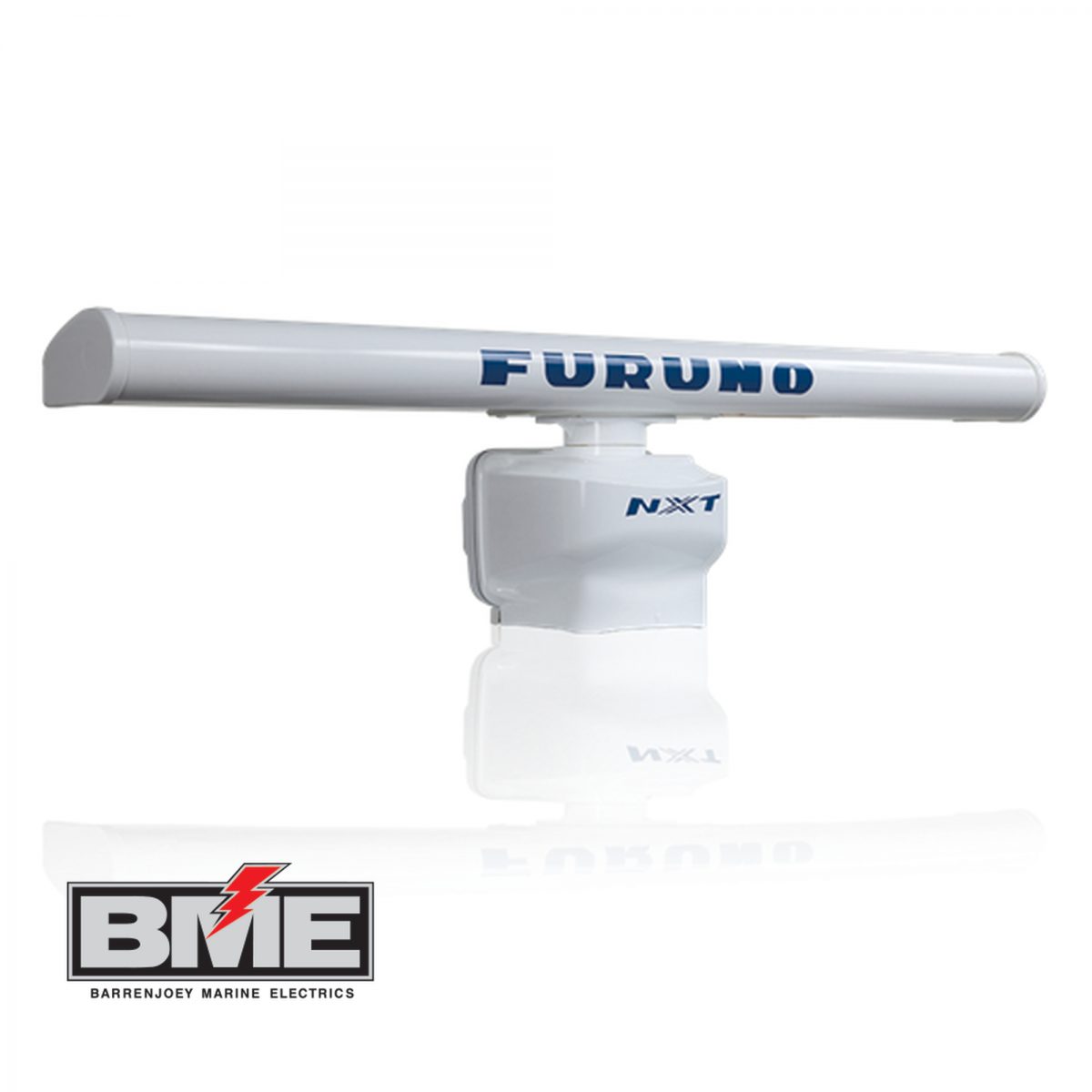

Furuno DRS6A NXT Radar Sensor


NXT radars are Solid-State Radars utilizing Doppler technology to ensure the safest navigation.

SKU: DRS6A NXT Categories: , Tags: , , Brand:

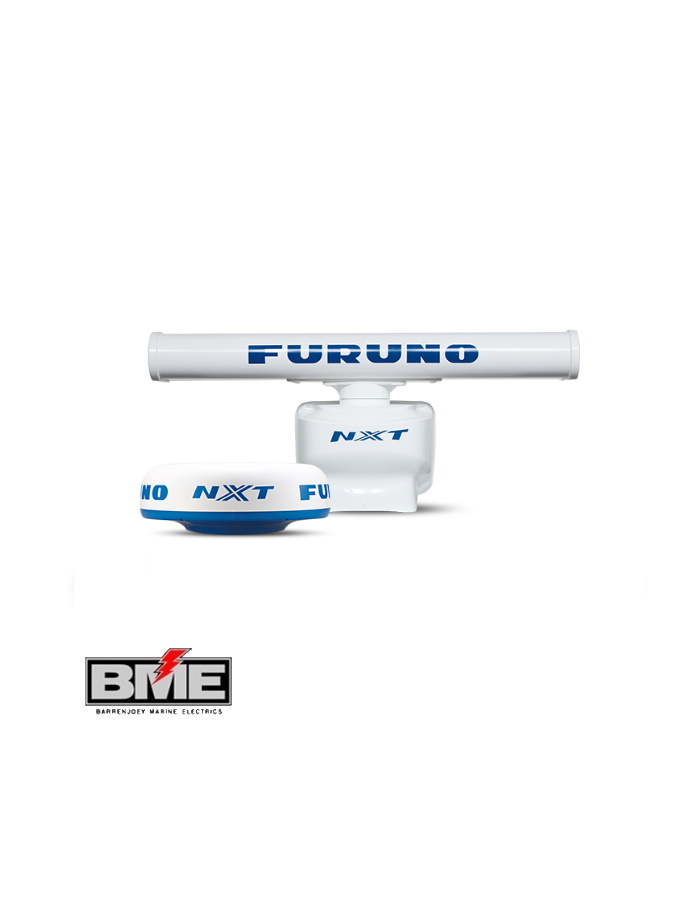

The NXT series features Target Analyzer, Fast Target Tracking and Auto Target Acquire function to offer optimal detection and sensitivity of hazardous objects. Combined with RezBoost technology, the DRS6A-NXT and DRS4D-NXT have no equal in spotting and tracking targets moving around your vessel efficiently with a high resolution.

DRS6A_NXT 25W 72NM 24/36/48rpm Drive Unit only 12/24vDC (Drive unit only – antenna/cable to be added on)

UNIT ID: IMD03658000


  • Solid-State pulse compression Doppler Radar
  • Revolutionary Target Analyzer function instantly identifies hazardous targets
  • Fast Target Tracking and Auto Target Acquire function, up to 100 targets
  • RezBoost beam sharpening to increase the resolution
  • Bird Mode to find the best fishing grounds by tracking birds
  • Simple installation, no need to open the radome (DRS4D-NXT only), external PSU is not required
  • New smart-connector cable for retrofitting existing DRS cable installations

Furuno DRS6A NXT Radar Sensor Specifications

  • Type: Slotted waveguide array
  • Vertical beam width: 22°
  • Antenna rotation speed: 24/36/48 rpm range coupled or 24 rpm fixed
  • Output power: 25 W
  • Minimum range: 10 m
  • Range resolution: 10 m
  • Range accuracy: 1% of range in use or 10 m, whichever is the greater
  • Bearing accuracy: ±1°
  • Number of ports: LAN: 1 port, Ethernet, 100Base-TX, RJ45
  • Data sentences: IEC61162-1/2
  • Power Supply: 12/24 VDC: 9.5/5.0 A max
