Furuno FR-12 12.1″ Colour Radar Display (for DRS Series)

POA - Price on Application

12.1″ variant of FR standalone radar display – adds radar/chart overlay (with RP unit) and sub-display support.

Nationwide Shipping & Support

Guaranteed Safe Checkout

Furuno FR-12 12.1" Colour Radar Display (for DRS Series)
Furuno FR-12 12.1″ Colour Radar Display (for DRS Series)

    Call Back request

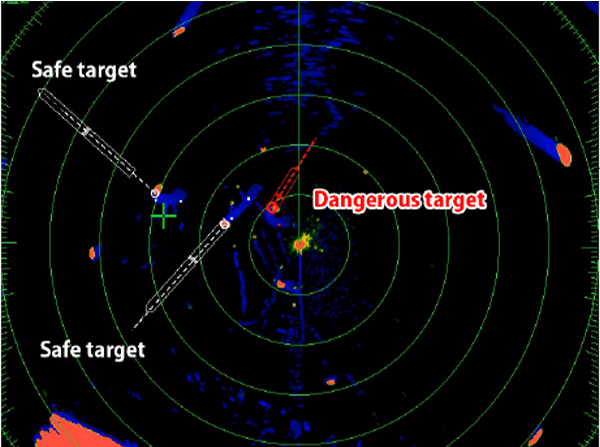

    The Furuno FR-12 is the 12.1″ variant of the FR standalone radar display. Compatible with the full Furuno DRS antenna range. The FR-12 additionally supports radar/chart overlay (with optional RP unit) and can connect up to 2 sub-display units. Includes Risk Visualizer™, Target Analyzer™ (NXT antennas), Fast Target Tracking™ and full AIS integration.

    Specifications

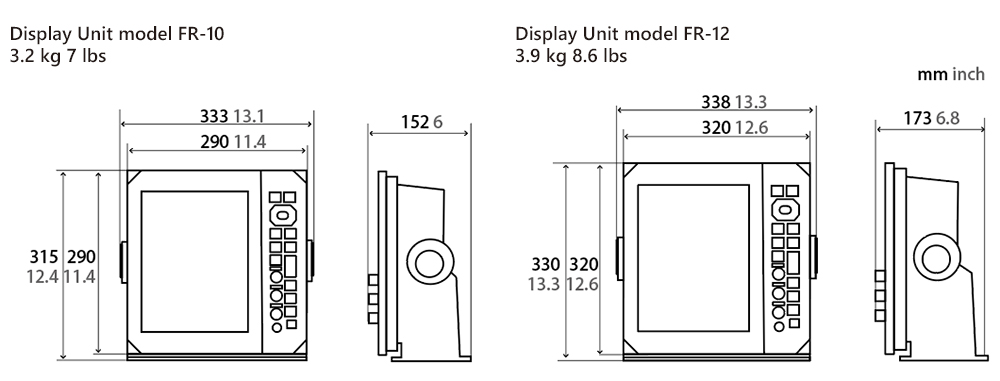

    • Display Size: 12.1″ colour LCD
    • Resolution: 800×600 pixels

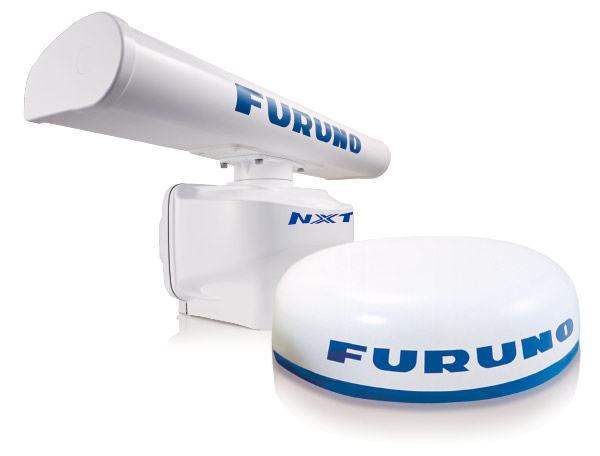

    • Compatible Antennas: DRS4DL+, DRS4DL/4D/6A/12A/25A X-Class, DRS2D/4D/6A/12A/25A NXT
    • Max Range: Up to 96 NM (depending on antenna)
    • Power Input: 12–24 VDC

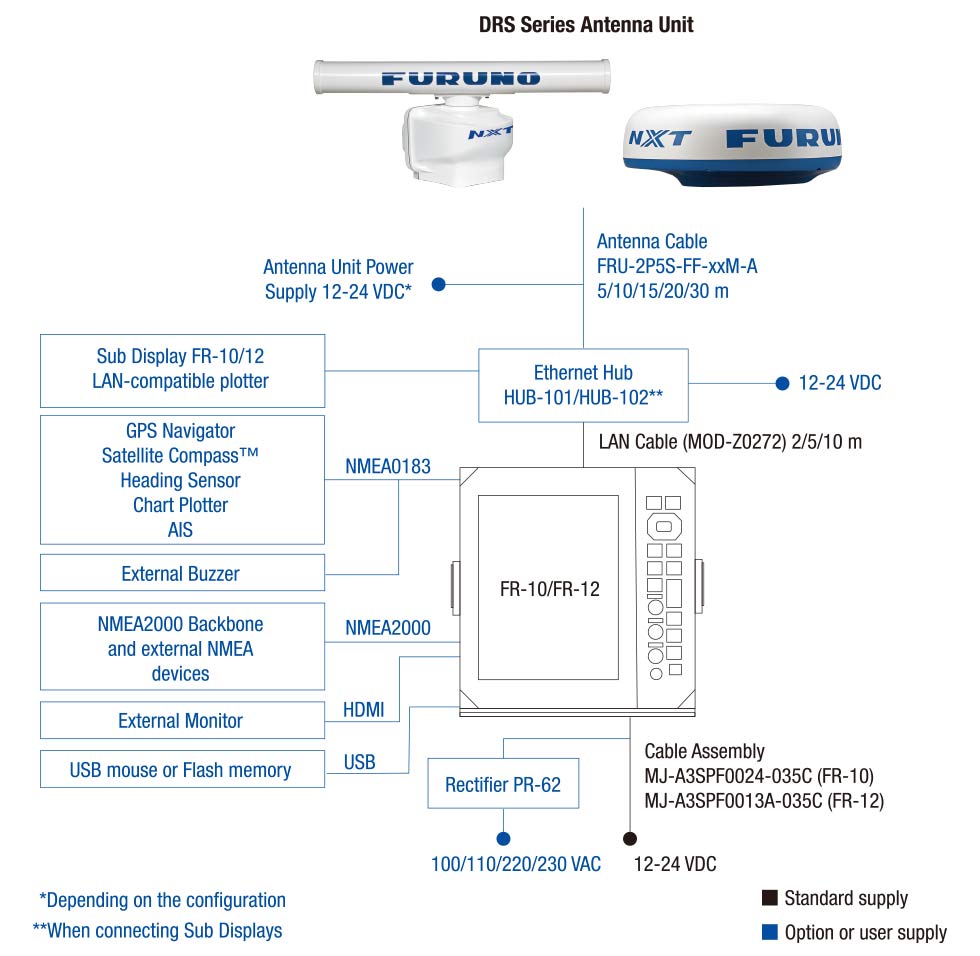

    • Connectivity: NMEA 2000, NMEA 0183, HDMI output, USB (mouse)
    • Additional Features: Radar/chart overlay (with optional RP unit), sub-display support (2 units max)
