Furuno FR-10 10.4″ Colour Radar Display (for DRS Series)

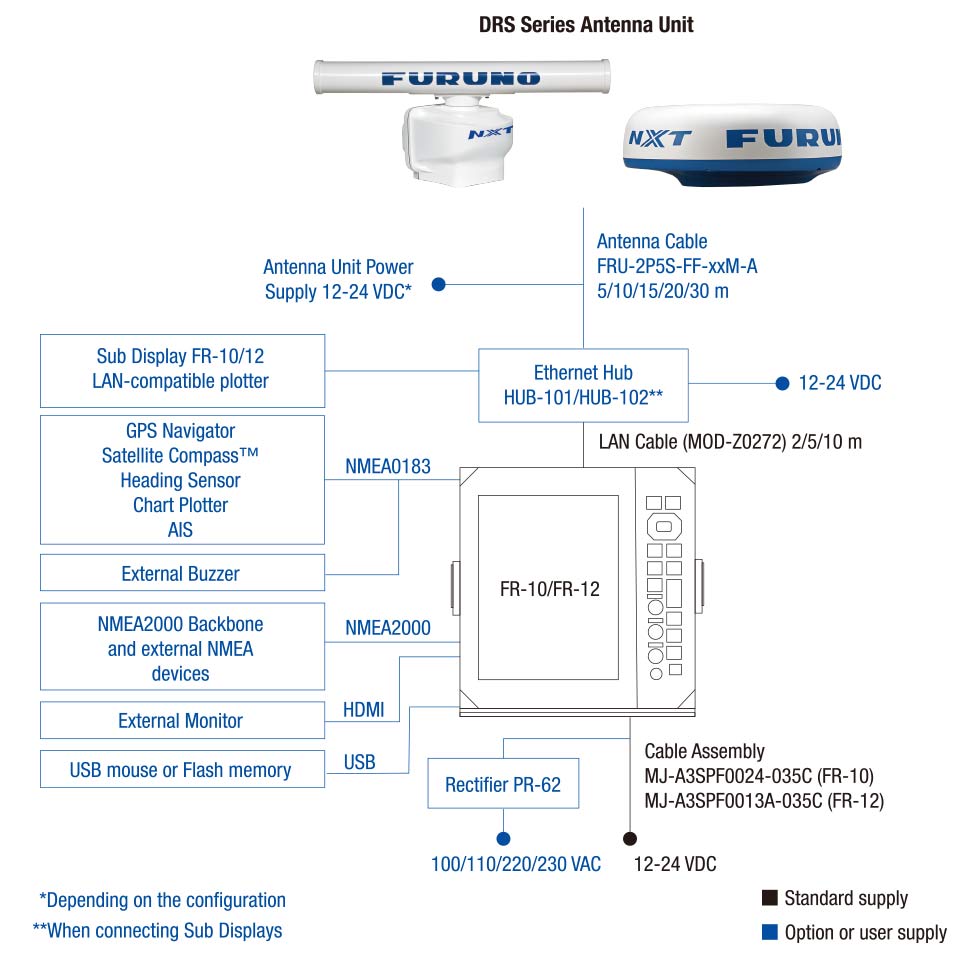

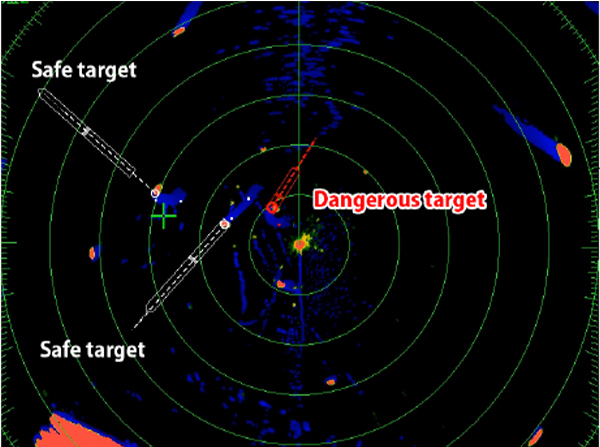

The Furuno FR-10 is a standalone 10.4″ colour LCD radar display designed to pair with Furuno DRS (Digital Radar Sensor) antenna series — offering up to 20 configurations with solid-state NXT or magnetron X-Class antennas. Features Risk Visualizer™, Target Analyzer™, Fast Target Tracking™, Echo Average, RezBoost™, Custom AIS overlay, NMEA 2000 and NMEA 0183 connectivity, USB mouse support and HDMI output for an external monitor.

Specifications

• Display Size: 10.4″ colour LCD
• Resolution: 800×600 pixels

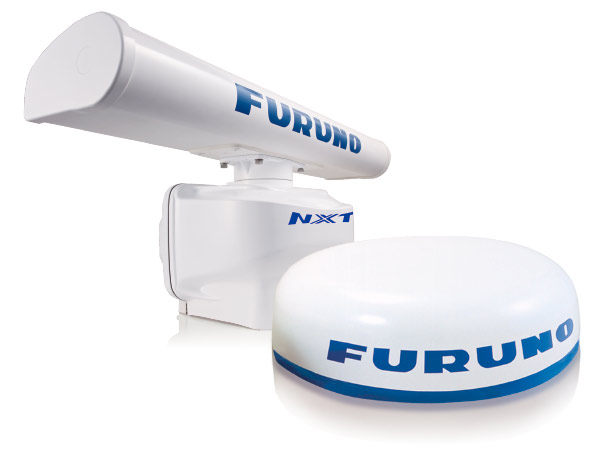

• Compatible Antennas: DRS4DL+, DRS4DL/4D/6A/12A/25A X-Class, DRS2D/4D/6A/12A/25A NXT
• Max Range: Up to 96 NM (depending on antenna)
• Power Input: 12–24 VDC
• Connectivity: NMEA 2000, NMEA 0183, HDMI output, USB (mouse)
• Features: Risk Visualizer, Target Analyzer, Fast Target Tracking, Echo Average, RezBoost, AIS overlay, Bird Mode
