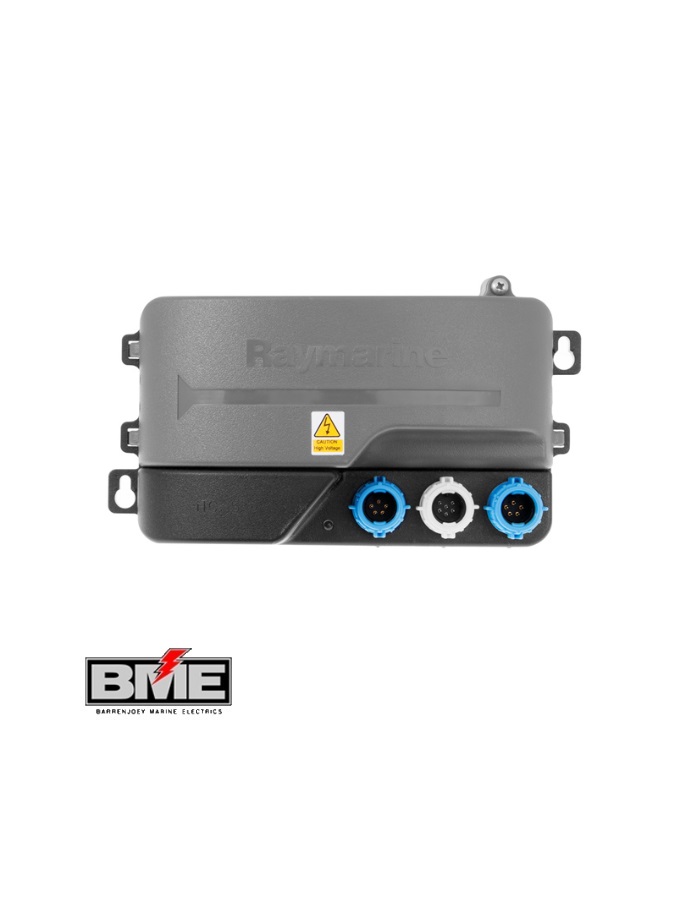

Raymarine iTC-5 Instrument Transducer Converter

Raymarine iTC-5 Instrument Transducer Converter The Raymarine iTC-5 converts analogue transducer signals used in i70, ST70+ and ST70 instrument systems to SeaTalk. Transducers for Speed/Temperature, Depth, Wind, Rudder Angle and Fluxgate Compass can be connected to the one iTC-5 unit, eliminating the need for multiple ST70 pods. Extended ST systems can support multiple iTC-5 units. SeaTalk connections at the base of the unit simply connect the iTC-5 unit into the SeaTalk backbone. Please note the ST40/i40/i50/i60 and ST60+ displays cannot calibrate the iTC-5. Only the i70 has full transducer calibration. The ST70/ST70+ can calibrate the Depth, Wind and Speed/Temp transducers (not Rudder or Compass). If you don’t have an ST70/ST70+ or i70 in your system, then the ST40/i40/i50/i60/ST60+ displays must be interfaced directly to the relevant analogue transducers Watch Promotional Video

1	Red – Speed and sea temperature transducer connection
2	Orange – Wind transducer and rotavecta connection
3	Yellow – Fluxgate Compass connection (DISCONTINUED)
4	Green – Rudder reference transducer connection
5	Blue – Depth transducer connection
6	SeaTalk backbone connection
7	SeaTalk spur connection
8	SeaTalk backbone connection

Raymarine iTC-5 Instrument Transducer Converter Specifications

---

• Product Number: E70010
• Nominal supply voltage: 12 V dc
• Operating voltage range: 9 – 16 V dc
• Current: <150 mA peak operating current
• Power consumption: Typical: 1.5 W
• Environmental Installation environment:
• Operating temperature = -15ºC to +55ºC
• Storage temperature = -25ºC to +70ºC
• Relative humidity: max 95% Splash proof to IPX2
• Data connections: SeaTalkng backbone 1 x SeaTalkng spur 5 x transducer connections with spade terminals
• Conformance: Europe: 2004/108/EC Australia and New Zealand: C-Tick Compliance Level 2
