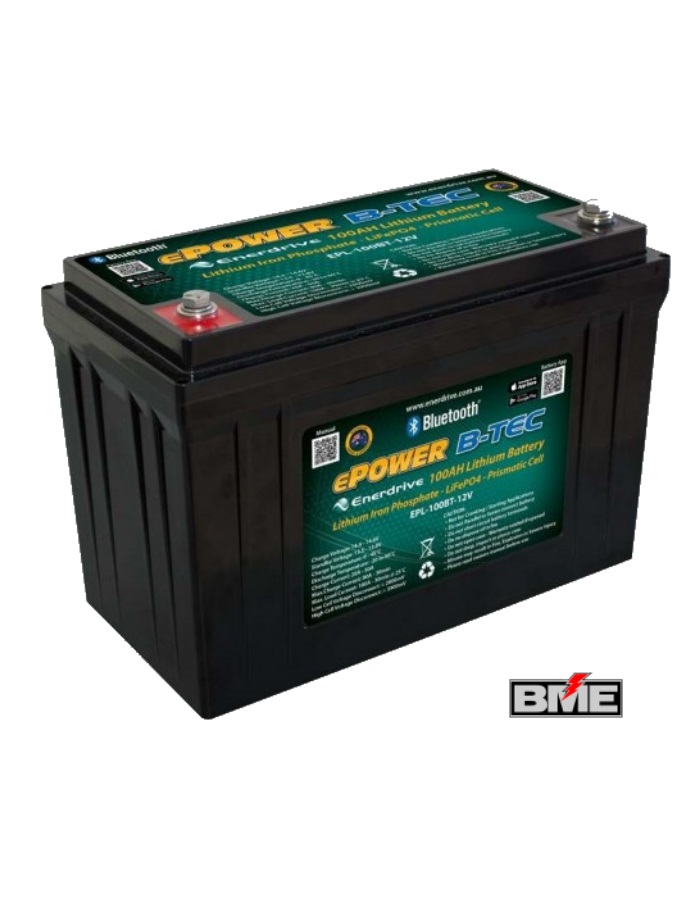

Enerdrive Lithium ePOWER B-TEC Battery Pack

Lithium LiFePO4 ePOWER B-Tec Battery Pack Introducing the new ePOWER B-TEC 100Ah Lithium Battery with Smartphone Technology. Available in 12v 100Ah, 125Ah, 200Ah & 24V 100Ah capacities including Smartphone battery monitoring, the ePOWER B-TEC is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.

The Enerdrive Lithium B-TEC battery is also equipped with an internal LiFePO4 Battery Management System (BMS) that can monitor and optimize each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

Features

• The ePOWER B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.
• The ePOWER B-TEC  battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.
• With over 5 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.
• With over 1200 complete systems in operation Australia wide, Enerdrive is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.

Enerdrive Lithium Battery Specifications

Normal Specification

• EPL-100BT-12V| EPL-125BT-12V | EPL-200BT-12V
• Nominal Voltage: 12.8V
• Nominal Capacity: 100Ah | 125Ah | 200Ah
• Cycle Life (DOD – 80% under controlled conditions): ≥ 2000 Cycles

Standard Charge Specification

• Battery Charge Temperature: 0 ̴ 45°C
• Normal Charge Voltage CV/CC*: 14.40 ̴ 14.60V
• Standby (Float) Voltage: 13.50 – 13.80V
• Maximum Charge Current: 50A @ 25°C for 30mins | 60A @ 25°C for 30mins | 150A @ 25°C for 30mins
• Recommended Charge Current for Maximum Life: ≤33A | ≤40A | ≤60A

Standard Discharge Specification

• Battery Discharge Temperature: -20 ̴ 60°C
• Battery Output Voltage Range: 11.00 ̴ 14.60V
• Maximum Discharge Current: 100A @ 25°C ± 5°C for 30mins 200A @ 25°C ±5°C for 30mins
• Pulse Discharge Current: 450A for 1.0s
• Discharge Cut-off Voltage: ≤11.20V
