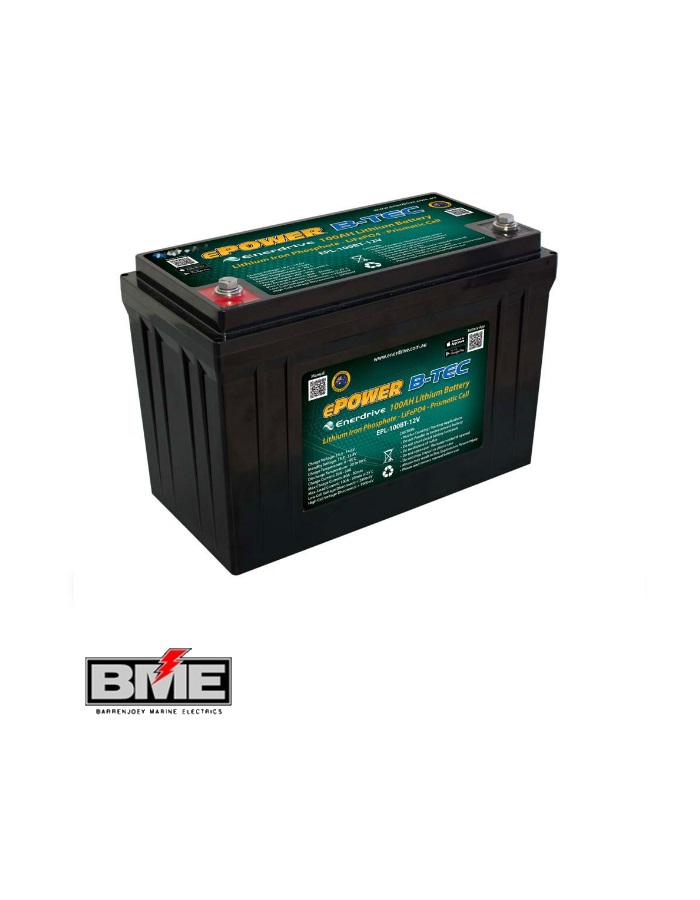

Enerdrive ePOWER B-TEC 12V Lithium Battery Range

Enerdrive ePOWER B-TEC Lithium Battery Available in 12v 100Ah, 125Ah and 200Ah capacities, the ePOWER B-TEC lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity. The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery. The ePOWER B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative. The ePOWER B-TEC battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity. With over 5 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup. Smart Phone Monitoring System The Enerdrive ePOWER B-TEC battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;

Enerdrive ePOWER B-TEC Lithium Battery Specifications

---

Normal Specification	EPL-100BT-12V	EPL-125BT-12V	EPL-200BT-12V
Note: Specifications subject to change without notice.
Nominal Voltage	12.8V
Nominal Capacity	100Ah	125Ah	200Ah
Cycle Life (DOD – 80% under controlled conditions)	≥ 2000 Cycles
Battery Charge Temperature	0 ̴ 45°C
Normal Charge Voltage CV/CC*	14.40 ̴ 14.60V
Standby (Float) Voltage	13.50 ̴ 13.80V
Maximum Charge Current	50A @ 25°C for 30mins	60A @ 25°C for 30mins	150A @ 25°C for 30mins
Recommended Charge Current for Maximum Life	≤33A	≤40A	≤60A
Battery Discharge Temperature	-20 ̴ 60°C
Battery Output Voltage Range	11.00 ̴ 14.60V
Maximum Discharge Current	100A @ 25°C ± 5°C for 30mins	200A @ 25°C ±5°C for 30mins
Pulse Discharge Current	450A for 1.0s
Discharge Cut-off Voltage	≤11.20V

Mechanical Characteristics
Dimensions	Length 318mm	485mm
	Width 165mm	170mm
	Height 215mm	245mm
Weight	Approx 12.6 Kg	Approx 15.0 Kg	Approx 25.0 Kg
Storage Information
Temperature & Humidity Range	≤ 30 days -20°C ̴ 35°C, 45 ̴ 75% RH
	≥ 30 days -10°C ̴ 30°C, 45 ̴ 75% RH
Self-discharge Rate	≤ 3% Per Month
