Side-Power SE Tunnel Thruster Range The world’s leading series of bow and stern thrusters for leisure boats are the SE series from Side-Power. Side-Power offers the world’s largest range of DC thruster systems for leisure boats.
All the approved features and well-known quality boat builders around the world value, are now available for even smaller vessels.

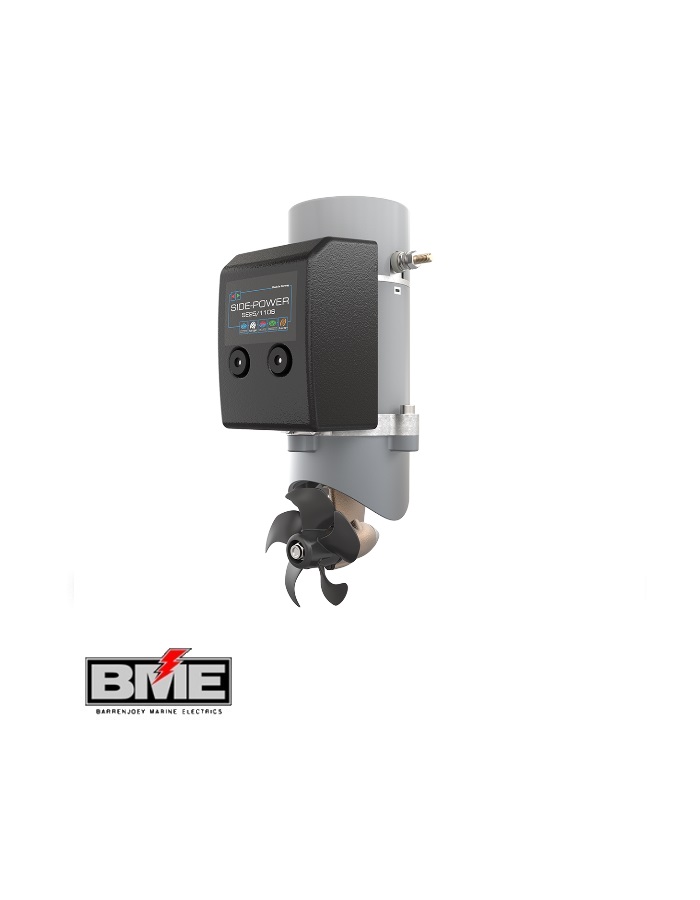

With the new SE25, we add yet another tunnel diameter to our extensive program. With a tunnel diameter of only 110mm, the SE25 is suitable for vessels up to 24 feet depending of the vessels windage area. As with all the other thruster models in the SE series, the SE 25 also offers tremendous installation flexibility, as the thruster can be installed upon the tunnel in any angle and the thruster motor can be rotated on the motor bracket in 90 degrees steps. Features
- Intelligent Power Control
The Side Power unique thruster controller that intelligently protects the thruster from potential inherent problems in all high current applications as well as user faults.
- Single Propeller
A properly engineered single propeller system will be the most energy efficient thruster. Its compact design fits easily into narrow bows making it the perfect match for smaller models.
- Galvanic Separation
The gearhouse / drive legs of most Side-Power DC electric thrusters are now fully galvanically isolated / separated from the electric motor and motor bracket. This ensures that even if there is an accidental short circuit or a current leak for other reasons, the immersed parts are not effected as they could be with direct electric contact.
Side-Power SE Tunnel Thruster Range Specifications
|Thrust at 10.5/21V* (kg – lbs)||25 – 55|
|Thrust at 12/24V* (kg – lbs)||30 – 66|
|Typical boat size (ft – m)||> 24′ – > 7|
|Tunnel I.D. (mm – in)||110 – 4.33″”|
|Power at 10.5/21V* (kW – hp)||1.5 – 2|
|For DC system (V)||12|
|Weight (kg – lbs)||9.5 – 21|
|Min. Batt. Capacity (CCA** 12/24V)||200/380|
