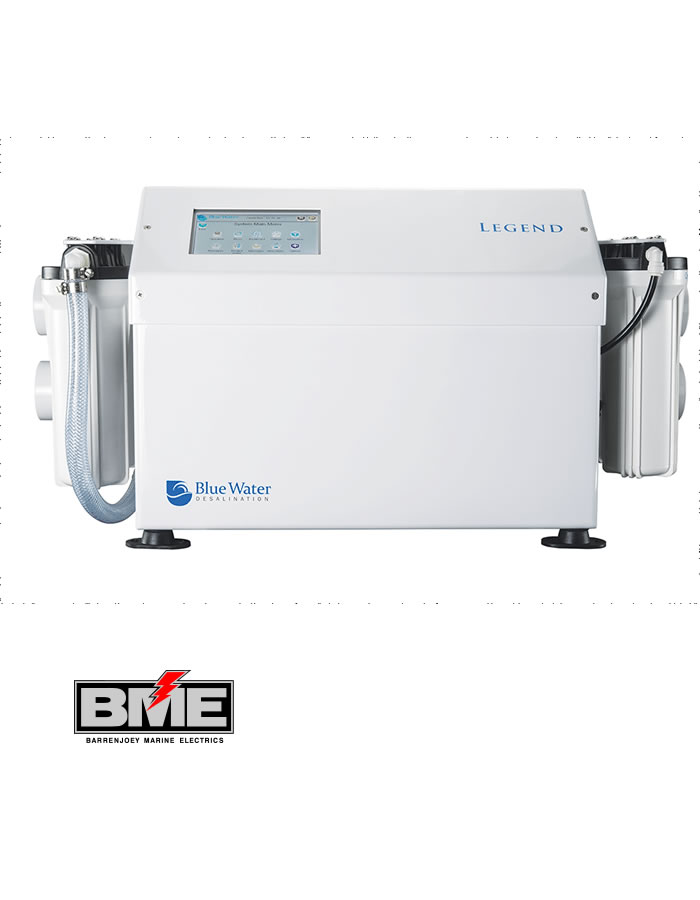

Blue Water Legend Series Watermaker Ranging from 475 Gallons (1,800 Litres) Per Day to 1,850 Gallons (7,000 Litres) Per Day, the Blue Water Legend Series desalination systems are designed for all sized vessels. The Blue Water Legend Series units are all fully automatic using innovative technology.

All Blue Water Legend units feature a standard 7″ full colour touch screen and LED indicators, allowing for simple water production. This touch screen has a one-touch start / stop function, in which the patented software continuously monitors functionality of the unit. The unit will automatically adjust itself including pressures and flow for maximum water production and quality.

There is no extra charge for upgrade to commercial grade pre-filters. Additionally, the Legend Series units are available as either compact or modular for when there is a shortage of space available.

All Blue Water desalination units are designed not only for easy use, but simple troubleshooting and maintenance. The 7″ full colour touch screen are simplified by the wide array of data that is collected and accessible through the touch screen. Features

  • Fresh Water Flush system
  • High Rejection membranes
  • Quiet and reliable high pressure pumps
  • Product water Carbon filter
  • Dual voltage 50/60 Hz Motors
  • Stainless steel booster pump shaft
  • Designed for ease of service & maintenance
  • Installation kit including bronze sea strainer
  • No charge upgrade to Commercial Pre-filter

Advantages

  • Fully Automatic
  • Industry leading 7” full-color icon driven touch screen controller
  • Monel transducers for longer life
  • Product water pH filter
  • NMEA 2000 compatibility available
  • Optional 4.3” or 7” remote touch screen control
  • Expandable to 1850 gallons per day
  • Available in both compact frame and modular component style configurations

Blue Water Legend Series Watermaker Specifications


Like all Blue Water desalination units, the Legend Series systems come standard with:

  • High rejection membranes
  • Fresh water flush
  • Dual voltage 50/60 Hz motors
  • Quiet yet reliable high pressure pumps
  • Stainless steel booster pump shaft
  • Product water carbon filter
Model #No. of MembranesProduction / hourProduction / 24 hour (Gallon / Liter)Feed Flow GPMWeight (lbs. / kg.)
LGD 475120 Gal. / 75 L475 / 1,8004.2165 / 75
LGD 750131 Gal. / 118 L750 / 2,8404.2175 / 79
LGD 950-1140 Gal. / 150 L950 / 3,6004.2185 / 84
LGD 950-2240 Gal. / 150 L950 / 3,6004.2200 / 91
LGD 1200250 Gal. / 189 L1,200 / 4,5404.2215 / 98
LGD 1500263 Gal. / 237 L1,500 / 5,6804.2215 / 98
LGD 1850277 Gal. / 292 L1,850 / 7,0004.2230 / 104
Model (Phase)Booster Pump HP | kWHP Pump HP | kWHzVoltageRun AmpsStart Amps
Single0.50 | 0.372.5 | 1.850/60110/22031 / 15.5109 / 55
Three0.50 | 0.373.0 | 2.250/60208/23010.6 / 8.937 / 36
Three0.50 | 0.373.0 | 2.250/60380/4605.3 / 4.418 / 16
