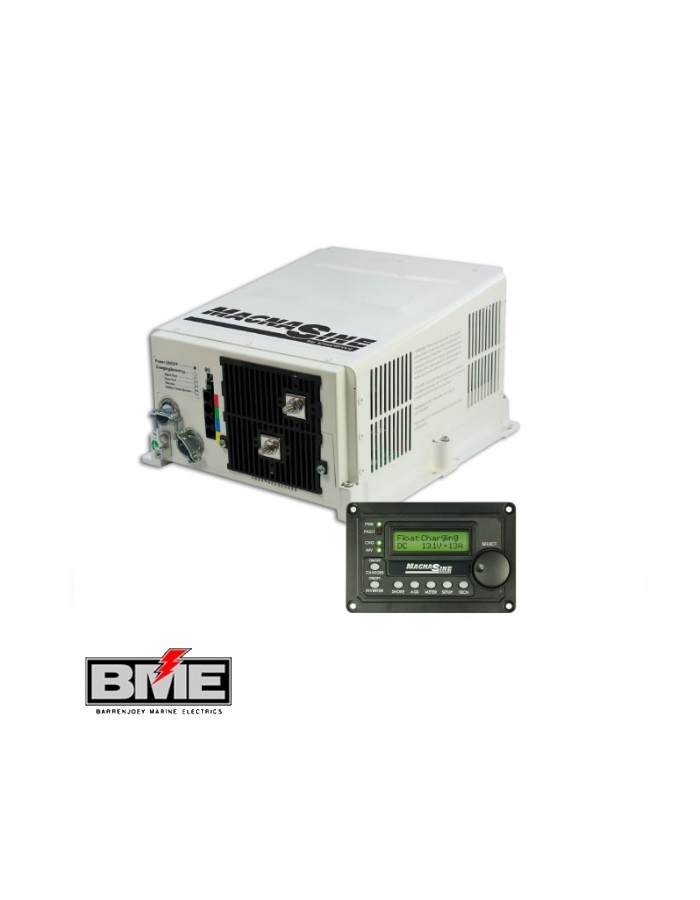

Enerdrive MagnaSine Pure Sine Wave Inverters Over 70 years of combined inverter manufacturing and design experience has resulted in the MagnaSine range by Enerdrive. In addition to being one of the industries most dependable and innovative inverter/chargers, The Pure Sine Wave range has a resilient design and are all produced in the USA.
The MagnaSine is a top of the range; new generation inverter charger which perfectly caters for any marine use, recreational or commercial. The Magnasine Inverter Charger’s are both supplied with a fully functional LCD Remote Control Panel. Features
- Massive Inverter Surge Capacity
- High Output Charging
- Easy to Install
- Low Frequency Transformer Inverter
- Comes with ME-RC Remote Control
- USA Made and Proven Design
The ME-RC Remote Control:
The ME-RC remote control allows you to monitor and customize the operating parameters to your MagnaSine inverter/charger. The ME-RC50 comes standard with a 50 foot, 4-conductor (twisted-pair) telephone cable and includes non-volatile memory (preserves adjustable settings, even if power to the remote or inverter is removed). The MagnaSine remote control has all of the programming and operation functions included in an easy-to-use package.
ME-RC displays:
- Battery Voltage
- Inverting
- Battery Charging Status
- Inverter Charger operating status and warnings
- DC Load Amps, DC Amps Consumed and State of Charge (if ME-BMK is being used)
Enerdrive MagnaSine Pure Sine Wave Inverters Specifications
| Model | MS2712E | MS4124E | MS4348E |
|---|---|---|---|
| Charger Specifications | |||
| Parallel Capable (Parallel stackable up to 4 units) | No | Yes (RTR Remote required) | Yes (RTR Remote required) |
| Input battery voltage range | 9 – 17 Vdc | 18 – 34 Vdc | 36 – 68 Vdc |
| Nominal AC output voltage | 230 Vac ±5% | ||
| Output frequency and accuracy | 50 Hz ± 0.4 Hz | ||
| Total Harmonic Distortion (THD) | < 5% | ||
| 1 msec surge current (amps AC) | 45 | 65 | 75 |
| 100 msec surge current (amps AC) | 21 | 30 | 37 |
| 5 sec surge power (real watts) | 4100 | 6300 | 7500 |
| 30 sec surge power (real watts) | 3750 | 5300 | 7100 |
| 5 min surge power (real watts) | 3600 | 4750 | 6600 |
| 30 min surge power (real watts) | 3500 | 4600 | 5000 |
| Continuous power output (@ 25°C) | 2700 VA | 4100 VA | 4300 VA |
| Maximum continuous input current | 360 ADC | 273 ADC | 143 ADC |
| Inverter efficiency (peak) | 86% | 90% | 91% |
| Transfer time | ~ 20 ms | ||
| Search mode (typical) | 9 watts | 9 watts | 10 watts |
| No load (230 VAC output, typical) | 34 watts | 30 watts | 28 watts |
| Waveform | Pure Sine Wave | ||
| Charger Specifications | |||
| Continuous output @ 25°C | 125 ADC | 105 ADC | 55 ADC |
| Charger efficiency (peak) | 83% | 88% | 91% |
| Power factor | > .95 | > .95 | > .95 |
| Input current at rated output (AC amps) | 8.5 | 14 | 16 |
| Transfer relay capability | 30 amps AC | ||
| Five stage charging capability | Bulk, Absorb, Float, Equalize (requires remote), and Battery SaverTM | ||
| Battery temperature compensation | Yes, 4.6 m (15′) Battery Temp Sensor standard | ||
| Internal cooling | 0 – 120 cfm variable speed drive using dual 92 mm brushless DC fans | ||
| Overcurrent protection | Yes, with two overlapping circuits | ||
| Over temperature protection | Yes on transformer, MOSFETS and battery | ||
| Conformal coating on PCBs for corrosion protection | Yes | ||
| Powder coated chassis & top for corrosion protection | Yes | ||
| Stainless steel fasteners for corrosion protection | Yes | ||
| Listings | C-Tick (Australian Standards) | ||
| Warranty | 2 Years | ||
| Environmental Specifications | |||
| Operating temperature | -20°C – +60°C | ||
| Non-operating temperature | -40°C – +70°C | ||
| Operating humidity | 0 – 95% RH non-condensing | ||
| Physical Specifications | |||
| Dimensions (H x W x L) | 20.3 x 32.1 x 34.9 cm | ||
| Mounting | Shelf (top or bottom up) or wall | ||
| Weight | 25.0 Kg | ||
| Shipping weight | 28.2 Kg |
