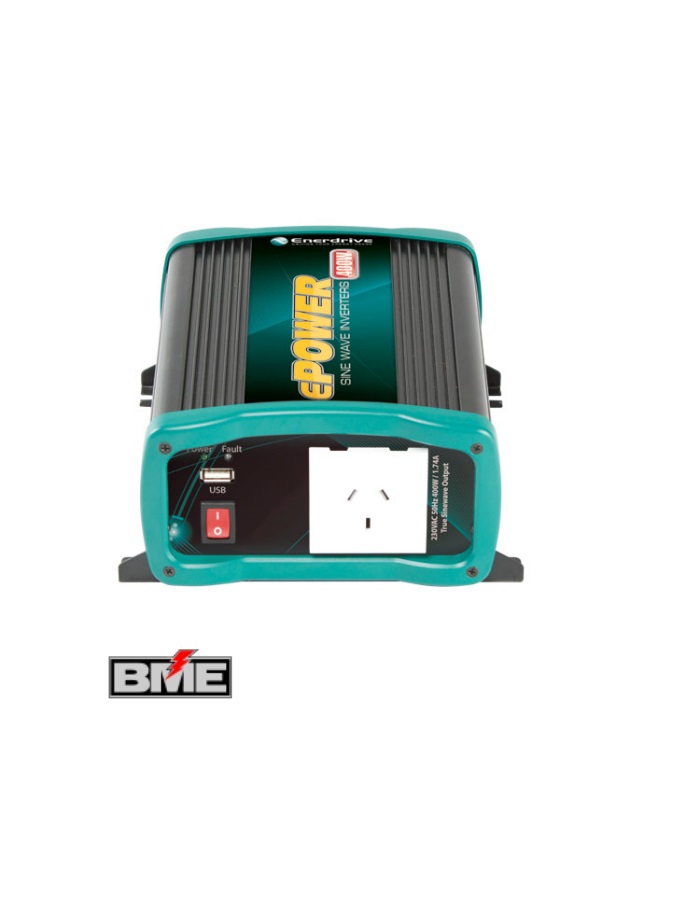

Enerdrive ePower Pure Sine Wave Inverters and Kits The Enerdrive ePower range of Pure/True Sine Wave Inverters are designed and manufactured to ensure high-quality, top of the line performance. There are a variety of choices from the Compact 400W, 1000W, and 2000W inverter models.
The Enerdrive ePOWER 400W, 1000W & 2000W True Sine Wave Power Inverter converts 12V battery power into true sine wave AC power, allowing you to run loads up to 2000 watts.
Electronic equipment and circuitry are designed to operate with a true sine wave, so most loads will perform better when connected to true sine wave. The ePOWER range also allows you to charge and operate multiple electronic devices at once. These Inverters utilize their superior and user-friendly design to deliver the best performance for providing AC and 5V USB power for your vessel.
With such reliability, your boating experience will be stress-free, for any boat, anytime, anywhere. Features
- Australian GPO Outlets
- True sine wave output is ideal for operating motor loads, and to reduce stress on surge protection circuitry, meaning potentially longer equipment life
- Audio alarm with warning/error codes to alert user to check inverter condition before unit shutdown
- Automatic shutdown protects overload, over temperature and low/high battery conditions
- High surge capacity for products that require more power to start (2 x constant)
- High efficiency conversion of battery available power to AC power
- Mounting brackets for permanent installation
- Heavy duty DC battery stud connectors
- Includes 5V USB port
- 2 Year Warranty
Enerdrive ePower Pure Sine Wave Inverters Specifications
| Model – Description | ePOWER 400 | ePOWER 1000 | ePOWER 2000 |
|---|---|---|---|
| Part Number | EN1104S | EN1110S | EN1120S |
| AC Output Power | 400W | 1000W | 2000W |
| AC Output Current | 1.74A | 4.3A | 8.7A |
| AC Surge Power (Peak) | 800W | 2000W | 4000W |
| AC Output Voltage | 230 Vac / 50 Hz | ||
| AC Output Waveform | True Sinewave | ||
| AC Output Socket | 1 outlet | 1 outlet | 2 outlet |
| Nominal DC Input Voltage | 12.5 VDC | ||
| No Load battery draw | < 0.8 ADC | < 1.2 ADC | < 1.2 ADC |
| DC Input Voltage operating range | 10.5 – 15.5 VDC | ||
| Under Voltage Alarm | 11.2 VDC | ||
| Under Voltage Shutdown | 10.5 VDC | ||
| Under Voltage Recovery | 11.8 VDC | ||
| Over Voltage Shutdown | 15.5 VDC | ||
| USB | 5V, 1A | 5V, 750 mA | 5V, 750 mA |
| Safety and Environmental | |||
| Conformance | All required Australian Standards | ||
| Agency Markings | RCM | ||
| Operating Temperature | 0°C to 40°C | ||
| Storage Temperature | -20°C to 60°C | ||
| Relative Humidity | 5-90% noncondensing | ||
| Operating Altitude | Up to 3000 meters above sea level | ||
| Weights and Dimensions | |||
| Weight | 1.73Kg | 2.9Kg | 5.5Kg |
| Dimensions (W x L x H) | 177 x 200 x 90mm | 177 x 325 x 90mm | 230 x 416 x 110mm |
| Warranty | 2 Years | ||
| Above run time is an estimate based on using a 12V-240AH battery bank for reference (Depth of discharge to 50%). Actual run time may vary. | ||
| Load | Consumption | Estimate Run time |
|---|---|---|
| Cordless Phone | 5W | 80 hrs |
| Clock/Radio | 8W | 65 hrs |
| Table Lamp | 40W/60W | 22 hrs/ 15 hrs |
| Freezer (8.8 cu. ft.) | 80W | 12 hrs |
| 20″ LCD TV | 100W | 10.5 hrs |
| Refrigerator (18 cu. ft.) | 120W | 8.3 hrs |
| Microwave (mid-size) | 1000W | 44 min |
| Coffee Maker | 1200W | 35 min |
| Vacuum | 1400W | 28 min |
