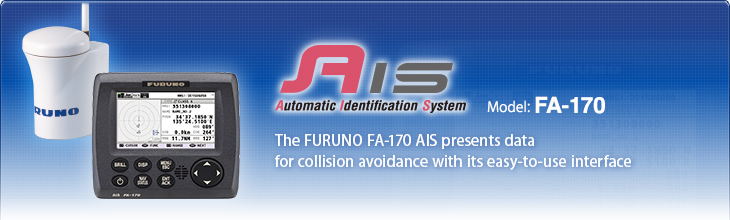

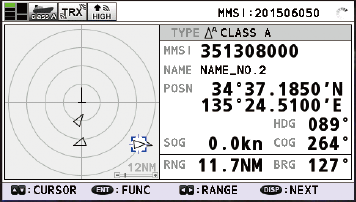

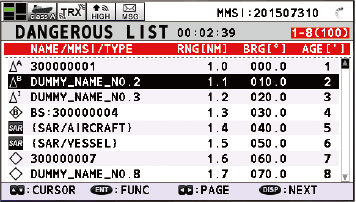

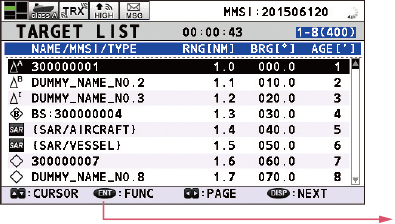

The Furuno FA-170 is a Class A AIS transponder with a 4.3″ colour LCD display. It displays AIS-equipped vessels, AIS-SARTs, coastal stations and aids to navigation within VHF range. AIS data can be output to ECDIS, radar or other navigational equipment for collision avoidance support. Stores up to 2,048 AIS targets. Includes 6 in/out serial ports, 3 input-only ports, one LAN port and one alarm output. BAM (Bridge Alert Management) ready to IMO MSC.302(87). Bundle includes GPA-017S GPS/VHF combined antenna and distributor unit.
Specifications
- AIS Class: Class A (IMO / Wheelmark approved)
- Display: 4.3″ colour LCD, 480×272 pixels
- AIS Target Storage: Up to 2,048 targets + AIS-SARTs
- Serial Ports: 6 in/out + 3 input-only
- Network: 1× LAN (Ethernet)

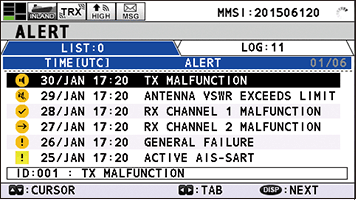

- Alarm Output: 1× contact closure
- Power Input: 12/24 VDC
- BAM Ready: Yes — IMO MSC.302(87) compliant
- Included Antenna: GPA-017S GPS/VHF combined antenna and distributor unit
- Approvals: IMO, Wheelmark, BSH
