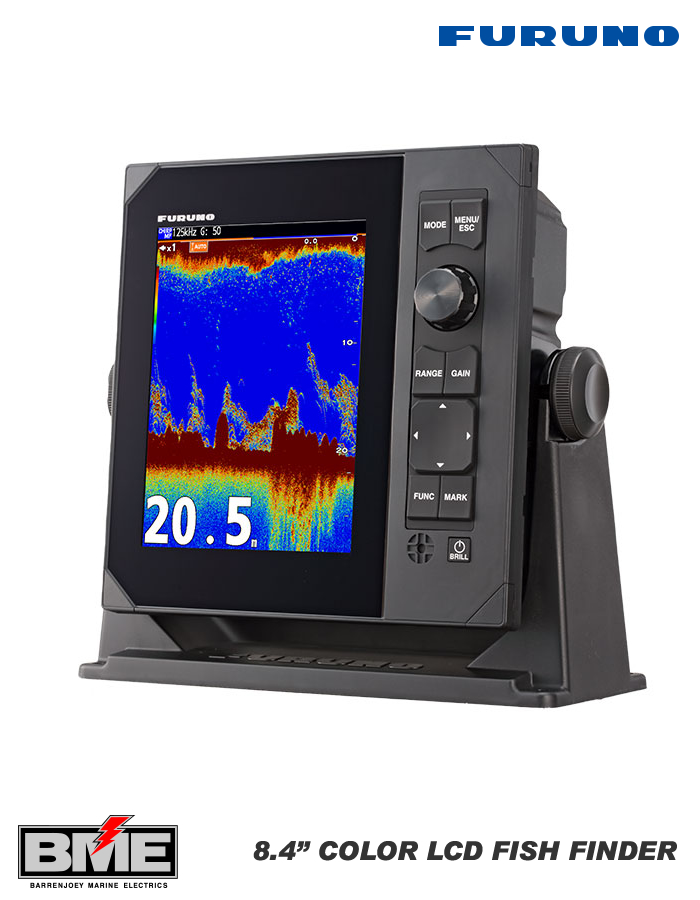

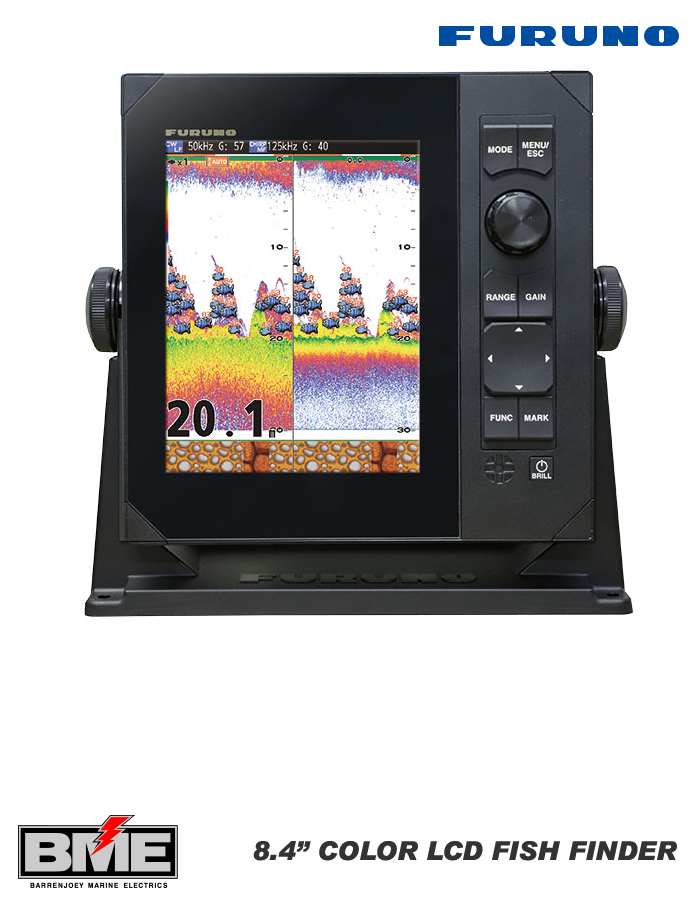

Furuno FCV-800 Fish Finder Featrures

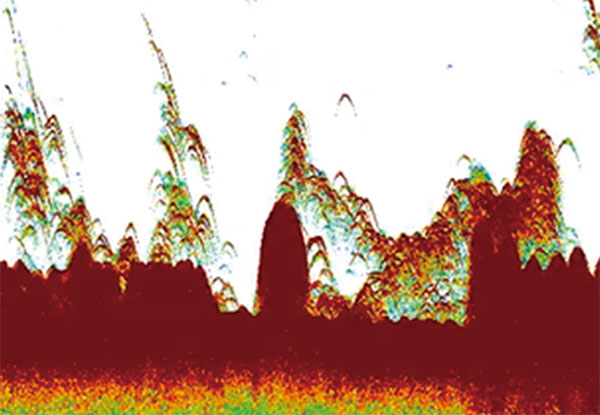

TruEcho CHIRP™
Traditional CW (Continuous Wave) Fish Finders transmit a signal composed of a single frequency, while CHIRP Fish Finders transmit a linear frequencymodulated signal – a wave with a frequency that increases over time. The FCV-600 and FCV-800 can utilize a broadband transducer to transmit across a spectrum of frequencies, resulting in better target resolution. With Furuno’s TruEcho CHIRP™, you’ll see greater detail and target separation for baitfish, game fish, and structure.

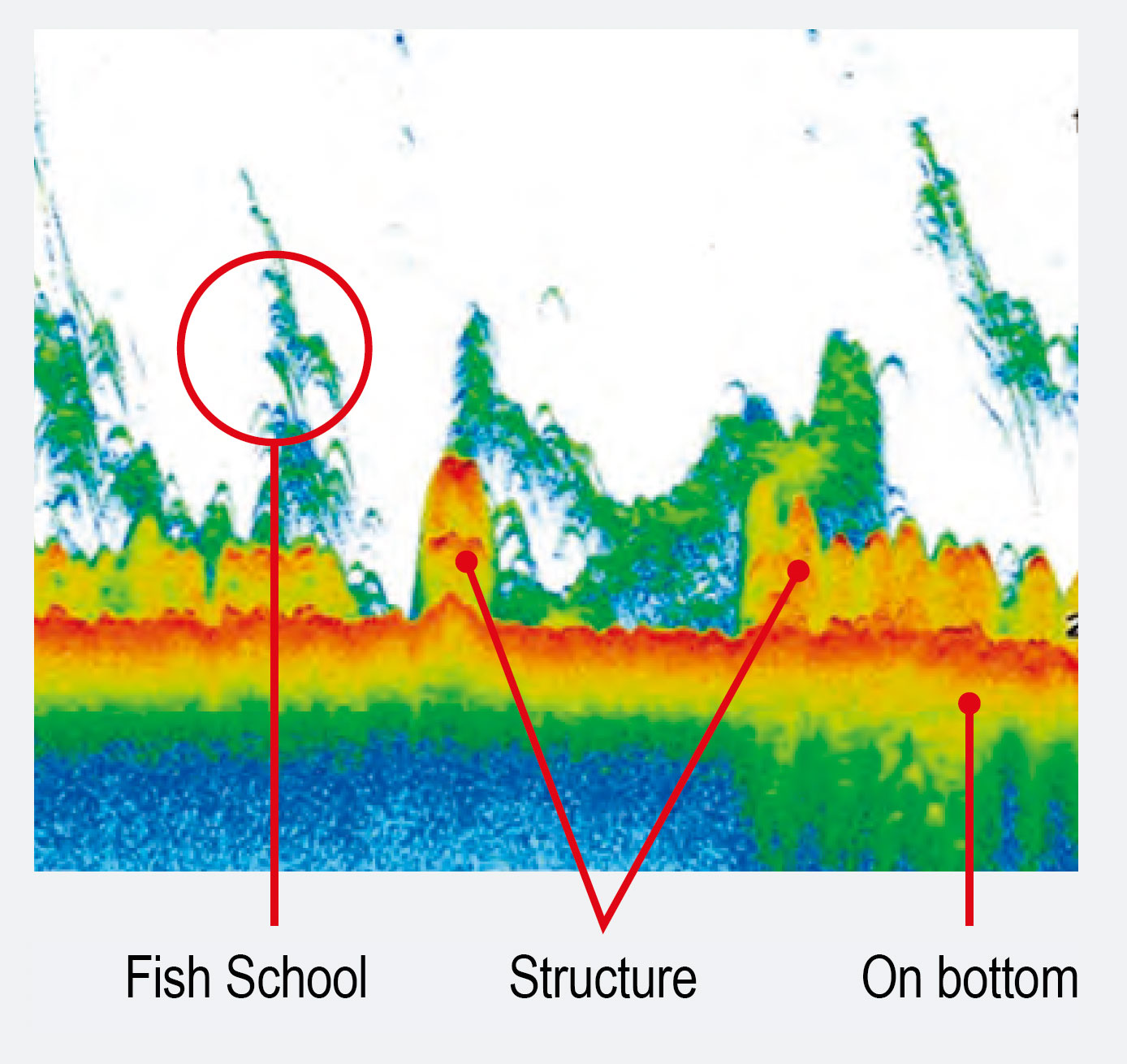

Color Expansion
With Color Range Expansion, the range of identifiable echoes is expanded so you can intuitively identify bottom fish from the seabed. Reefs, structure, and fish near the seabed are shown in slightly separated colors, making it easy to tell structure from fish at a glance.
Sunlight and Yellow color schemes offer enhanced visibility under bright sunlight conditions.
Wireless Connectivity
A second display can be installed to show the echoes and nav data from the FCV-600 and FCV-800 via wireless network, so you can monitor the underwater situation from the stern or bow while fishing.
Remote Display by Apps
The FCV-600/800 has a built-in Wireless LAN that allows you to display fish finder echoes on a smart phone or tablet device. The fish finder echoes can be viewed and operated by Android™ or iOS/iPadOS devices, even from a distance inboard. The compatible applications are listed in the table below.
* When utilizing the TZ iBoat app and NavNet Viewer app, be sure to use FCV-600/800 software
Specifications
Fish Finder
Frequency: CW: 50 and 200 kHz
CHIRP: 40 to 225 kHz
Transducer: 300 W / 600 W / 1 kW
Range Scale: 2 – 1200 m
Pulselength & PRR: 0.04 to 3.0 ms, Max 3,000 pulse/min
Display Mode: Single Frequency, Dual-Frequency, Zoom, Nav Data, A-Scope, Marker Zoom, Bottom-Lock, Bottom Discrimination, Color Expand, ACCU-FISH™, RezBoost™
Display
Display unit: 8.4″ TFT color LCD
Pixel number: SVGA 800 x 600
Others
Waterproofing: IP56
Power Supply: 12-24 VDC: 1.6 – 0.8 A

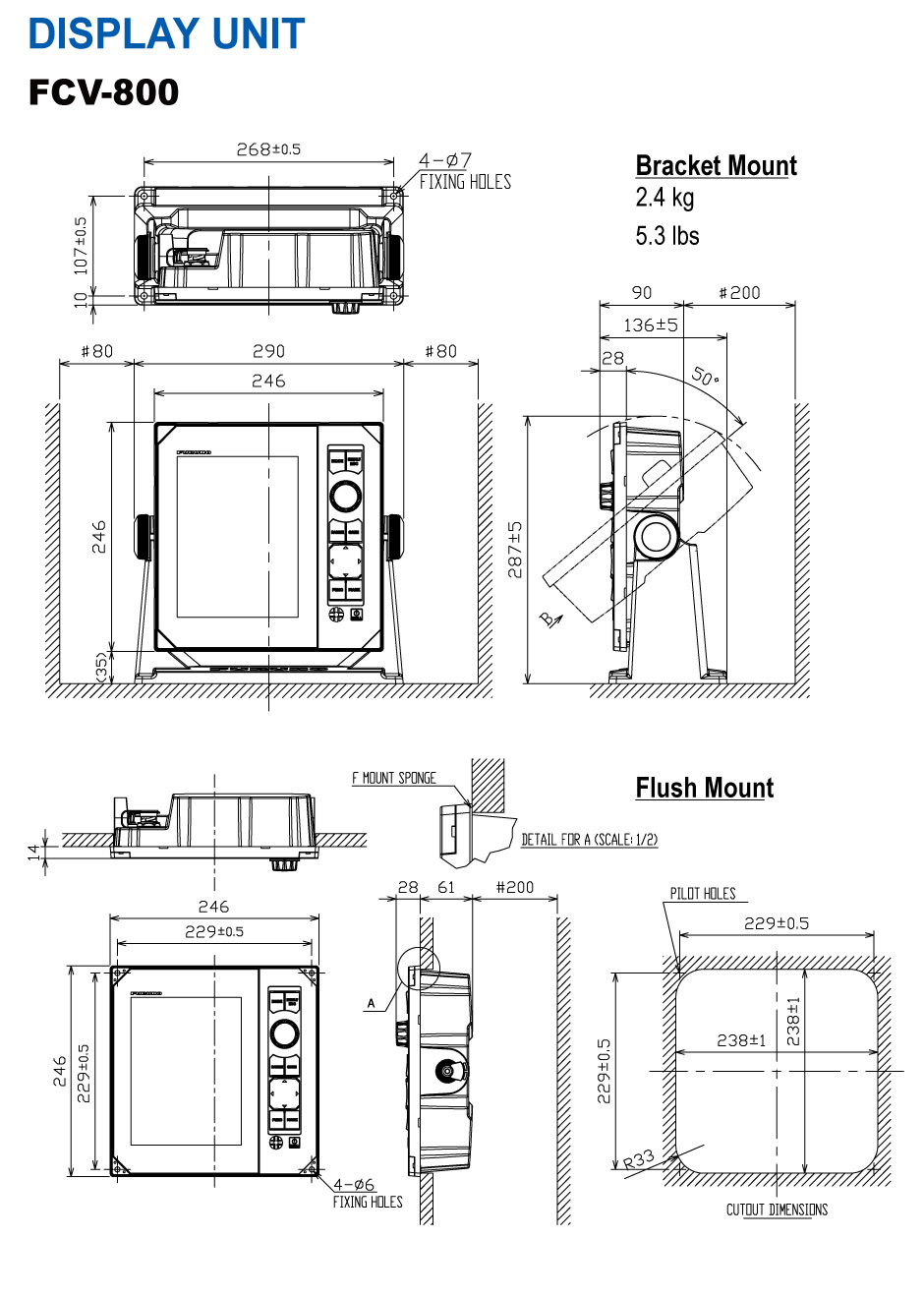

Size: 290 (W) x 281 (H) x 136 (D) mm
Weight: 2.4 kg (w/Bracket Mount)
