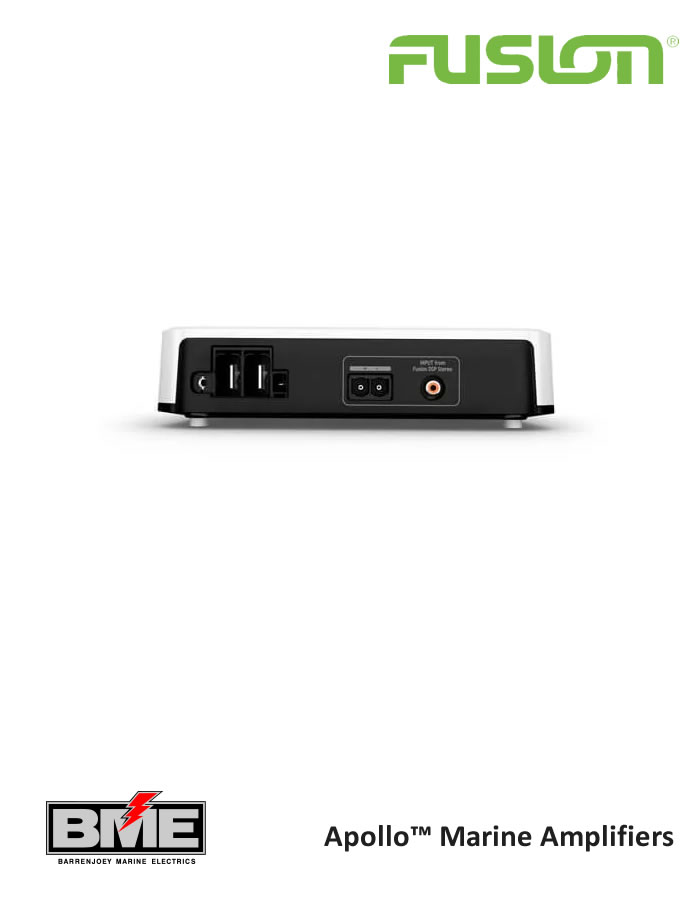

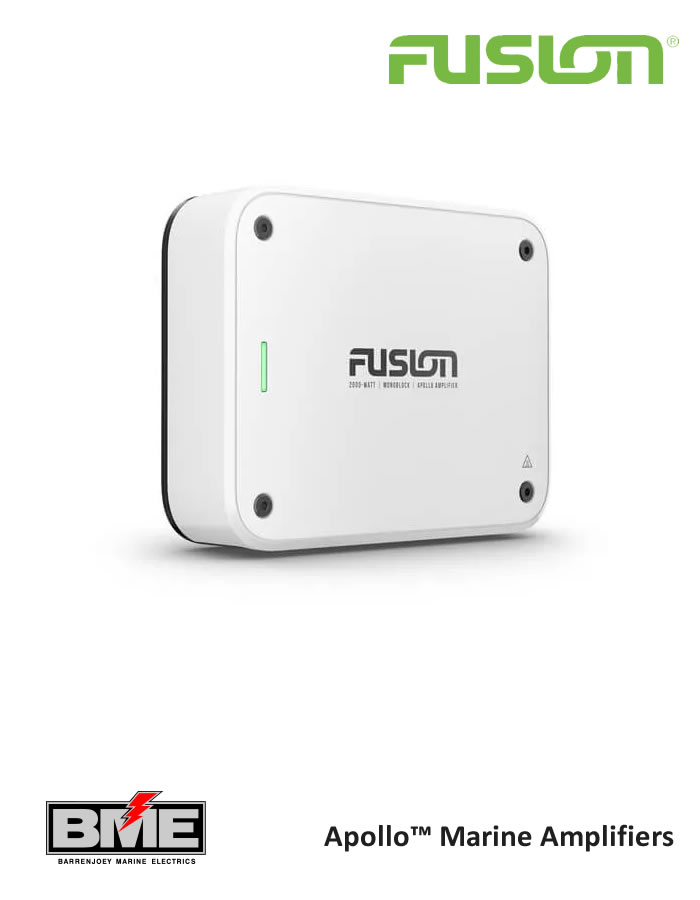

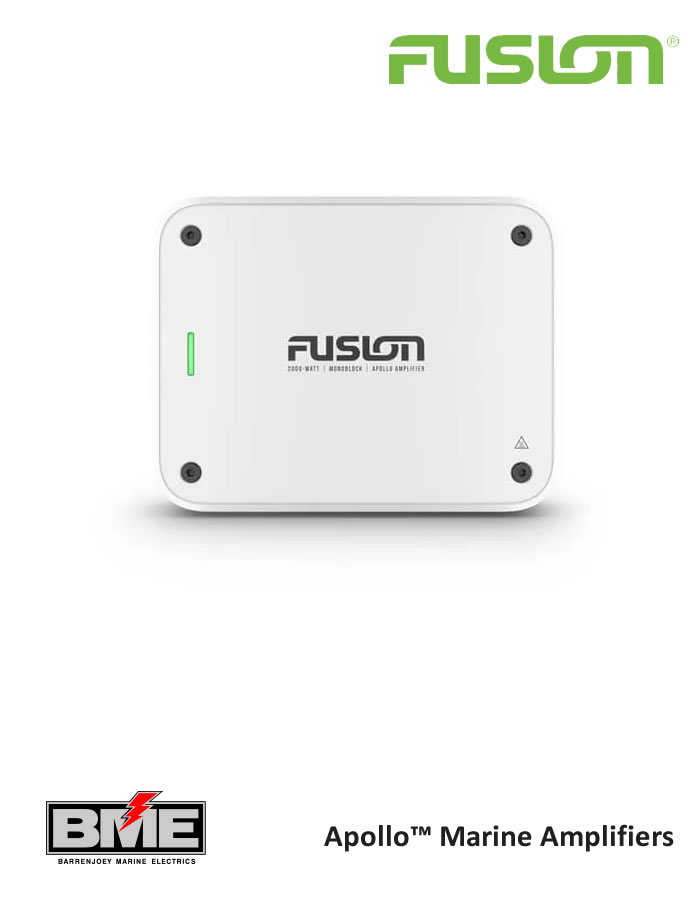

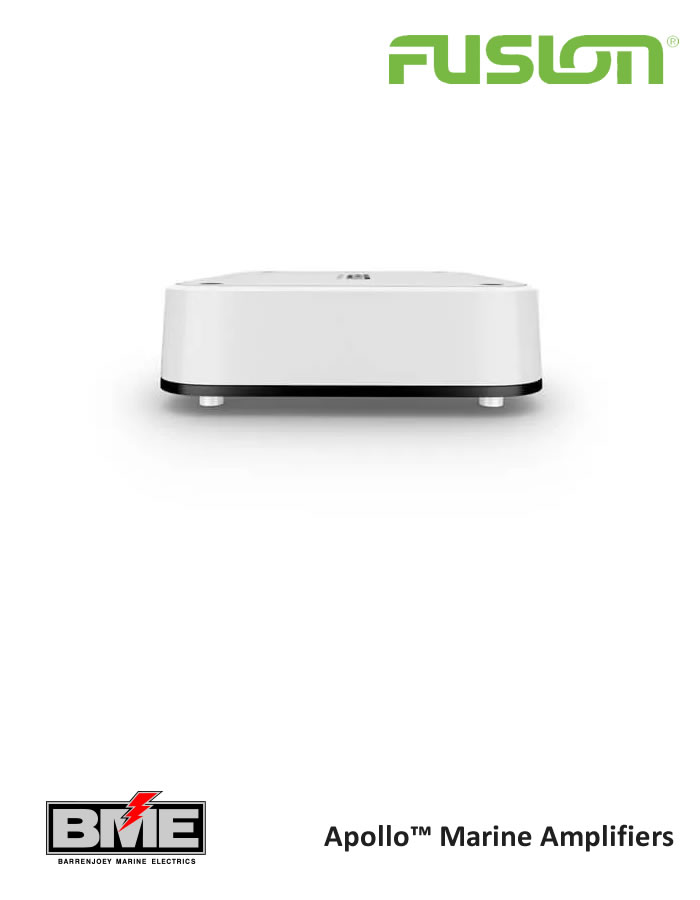

The Fusion® Apollo™ Zone Marine Amplifiers amplifiers are designed to produce impressive power with less drain on your battery. The monoblock produces 650-watt RMS and the 4/6/8 channel amplifiers produce 150-watt RMS per channel.
These amplifiers use the Easy Tune feature2, which automatically regulates audio settings. So, you can get the best quality sound without making manual adjustments.
Some amplifiers distort audio when they add power. Ours are specifically designed with minimal distortion and noise, so you can enjoy high-quality audio, even at higher volumes.
Specifications Overview
Physical dimensions without bracket (LxWxH)
Monoblock/4 Channel: 9.25″ x 7.06″ x 1.75″ (235 x 180 x 45 mm)
6 Channel: 11.69″ x 7.06″ x 1.75″ (297 x 180 x 45 mm)
8 Channel: 14.13″ x 7.06″ x 1.75″ (359 x 180 x 45 mm)
Zone: 3.94″ x 3.94″ x 1.57″ (100 x 100 x 40 mm)
Physical dimensions with bracket (LxWxH)
Monoblock/4 Channel: 9.25″ x 7.06″ x 2.13″ (235 x 180 x 50 mm)
6 Channel: 11.69″ x 7.06″ x 2.13″ (297 x 180 x 50 mm)
8 Channel: 14.13″ x 7.06″ x 2.13″ (359 x 180 x 50 mm)
Zone: 3.94″ x 4.53″ x 1.89″ (100 x 115 x 48 mm)
Weight
Monoblock/4 Channel: 4.85 lb (2.2 kg)
6 Channel: 5.95 lb (2.7 kg)
8 Channel: 6.94 lb (3.15 kg)
Zone: 1.01 lb (460 g)
Water rating
Monoblock/4/6/8 Channel: IPX2
Zone: IPX7
Amplifier class: Class-D
CEA-2006 power rating
Monoblock: 650 watt RMS x 1 @ 14.4 V input – 4 ohm < 1% THD
4 Channel: 150 watt RMS x 4 @ 14.4 V input – 4 ohm < 1% THD
6 Channel: 150 watt RMS x 6 @ 14.4 V input – 4 ohm < 1% THD
8 Channel: 150 watt RMS x 8 @ 14.4 V input – 4 ohm < 1% THD
Zone: 20 watt RMS x 2 @ 14.4 V input – 4 ohm < 1% THD
Total rated power output – 2 Ohm (Watts)
Monoblock: 1100 watt RMS x 1 @ 14.4 V input – 2 ohm < 1% THD
4 Channel: 290 watt RMS x 4 @ 14.4 V input – 2 ohm < 1% THD
6 Channel: 290 watt RMS x 6 @ 14.4 V input – 2 ohm < 1% THD
8 Channel: 290 watt RMS x 8 @ 14.4 V input – 2 ohm < 1% THD
Zone: 30 watt RMS x 2 @ 14.4 V input – 2 ohm < 1% THD
Peak power (Watts)
4 Channel: 580 watt RMS x 2 @ 14.4 V input – 4 ohm Bridged < 1% THD
6 Channel: 580 watt RMS x 3 @ 14.4 V input – 4 ohm Bridged < 1% THD
8 Channel: 580 watt RMS x 4 @ 14.4 V input – 4 ohm Bridged < 1% THD
Total rated power output – 4 Ohm Bridged (Watts)
Monoblock: 2000 watts
4 Channel: 1200 watts
6 Channel: 1800 watts
8 Channel: 2400 watts
Zone: 140 watts
Input sensitivity
Monoblock: 2.15 V RMS
4/6/8 Channel: 1.3 V RMS
Zone: 0.45 V RMS
Input impedance Monoblock/4/6/8 Channel: 22k ohm
Zone: 9k Ohm
Operating voltage
Monoblock/4/6/8 Channel: 10.8 V – 16 V DC
Zone Amplifier: 10.8 V – 32 V DC
Current consumption (StandBy) Monoblock/4/6/8 Channel: < 5 mA @ 14.4 V input
Zone: < 1 mA @ 14.4 V input
Current consumption (Idle)
Monoblock: < 0.89 A @ 14.4 V input
4 Channel: < 1.15 A @ 14.4 V input
6 Channel: < 1.32 A @ 14.4 V input
8 Channel: < 1.60 A @ 14.4 V input
Zone: < 0.04 A @ 14.4 V input
Current consumption (Max)
Monoblock: 87 A
4 Channel: 53 A
6 Channel: 78 A
8 Channel: 104 A
Zone: 10 A
Fuse rating
Monoblock/6/8 Channel: 125 A electronic fuse (no replacement necessary)
4 Channel: 85 A electronic fuse (no replacement necessary)
Zone: 16 A electronic fuse (no replacement necessary)
Ignition Safety Protected (SAE J1171) Yes
Protection circuits
Reverse voltage
Input under/over voltage
Over temperature
Output short circuit
Operating temperature range 0° to 50° C
Warranty 3 years
