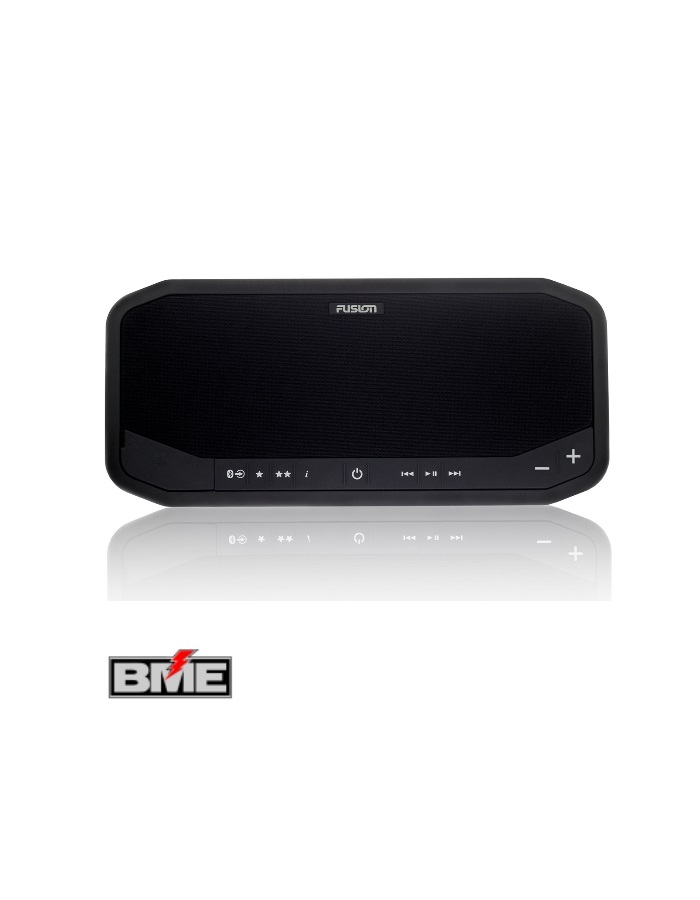

Fusion Panel-Stereo All-In-One Audio Entertainment W/ Bluetooth Audio An ultimate all-in-one, plug and play audio solution, the Panel-Stereo combines all the elements required for excellent audio reproduction inside a single perfectly tuned enclosure.
Enjoy flexibility in audio control options with Bluetooth audio streaming, AM/FM radio, USB and AUX audio connections available, providing incredible audio reproduction and a smooth frequency response with Fusion’s Digital Signal Processing (DSP).
Voice prompts guide operation of the stereo, and the versatility of three simple mounting options available lets you install your stereo where it is best suited.
The Panel-Stereo is a seriously versatile solution for quality in-cabin audio entertainment. Features Hi-Fi Audio Reproduction Through DSP: Digital Signal Processing optimizes the entire audio chain, ensuring the speaker components always receive premium quality audio for an efficient, incredibly smooth frequency response and Hi-Fi audio reproduction at every volume level.
Plug & Play All-In-One Audio Entertainment Solution: With built-in Class-D amplification, stereo source selection of Bluetooth, AM/FM radio, USB and AUX, two 3” speakers and a large surface bass radiator all combined in a perfectly tuned enclosure, the Panel-Stereo provides a one-product solution for in-cabin audio entertainment. All the acoustic parameters have been calculated by our acoustic engineers and taken into consideration when designing the enclosure to ensure quality audio reproduction wherever the Panel-Stereo is installed.
Simple, Versatile and Cost-Effective Installation: Designed for easy installation, the Panel-Stereo only requires 12V dc power, ground and AM/FM antenna connections.
Fusion Panel-Stereo All-In-One Audio Entertainment W/ Bluetooth Audio Specifications
| Sources | AM/FM / Bluetooth / USB / AUX x 2 |
|---|---|
| Digital Signal Processing (DSP) | Yes |
| Speakers | 2 x 3 in. speakers with 1 x passive radiator |
| Weight | 1.15kg (2.54 lbs.) |
| Fusion-Link Control (Wireless) | Yes |
| Bluetooth Wireless Technology | Bluetooth® audio streaming and control within 10m (33ft.) range (via devices compatible with A2DP/AVRCP 1.3 / SSP Bluetooth profiles). Bluetooth version 4.1 |
| ANT™ Technology | Yes – up to 3m (10 ft.) range |
| Wireless Frequency / Protocol | Bluetooth/ANT frequency: from 2,402 to 2,480 MHz Bluetooth/ANT max. power: 9 dBm EIRP |
| Internal Amplifier | Class-D, 2 x 43 W rms @ 14.4 V dc input, ≤ 1% THD+N |
| Water Resistance (IPX Rating) | IP65 (sealed chassis) |
| Peak Power | 140 W max. (2 x 70 W) |
| Multiple Languages Available | English, French, German, Dutch, Italian, Japanese, Mandarin and Spanish voice prompts are available. Software updates for each language are available for download from www.fusionentertainment.com |
| Auxiliary Inputs | 2 x stereo RCA inputs (AUX IN 1, AUX In 2) with 1 V rms typical AUX input level |
| USB | 1 x USB type A port for USB flash drive or media player connection. Also provides 1A charging |
| Line Out | 1 x stereo RCA output with 5.5V (peak to peak) max. line output level |
| Input Voltage | 10.8 – 16.0 V dc |
| Current (max.) | 10 A |
| Fuse | 10 A |
