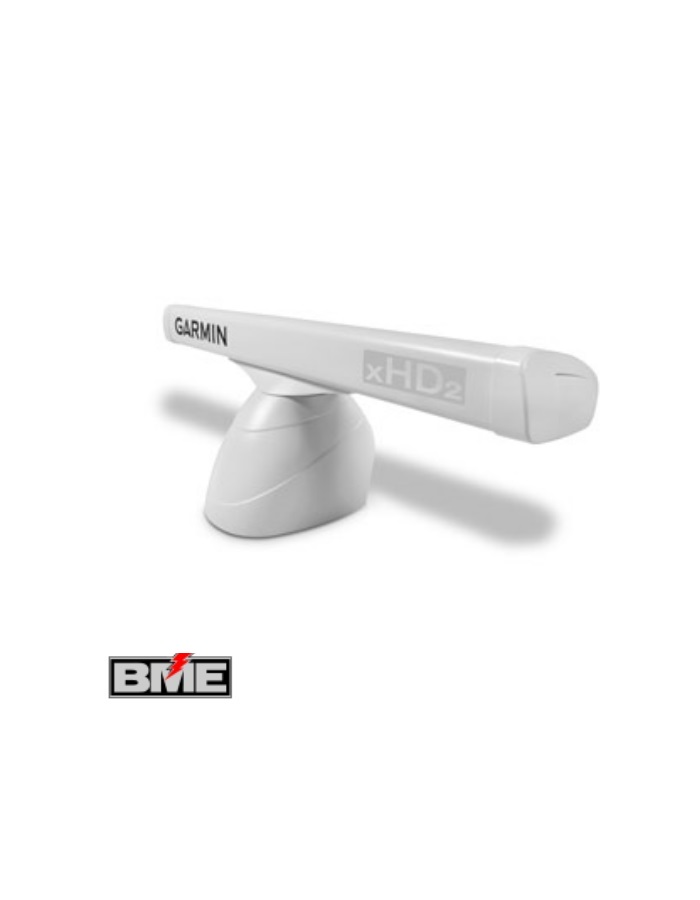

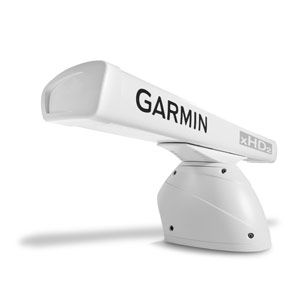

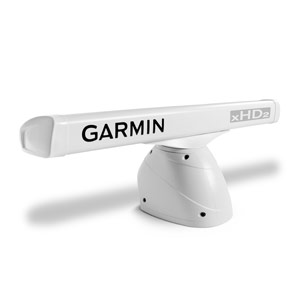

Garmin Open Array xHD2 Series The GMR xHD2 4 kW high-definition open-array radar is designed for serious seafarers of larger yachts and sport fishing boats that are most likely under 40-feet. The GMR xHD2 is the open array you need to get the features you want. It’s capable of excellent sensitivity and consistent target positioning, making it perfect for cruising and fishing offshore, overnight and in foggy, limited or no visibility conditions.
This high-definition 4 kW radar has the power to deliver excellent range, up to 72 nautical miles, even in fog or rain. Its narrow 1.8 degree horizontal beamwidth picks out targets well off in the distance.
It paints a clear image of the shoreline, other vessels, and impending weather on your Garmin chartplotter. You get consistent target positions, excellent target separation and reliable operation. Its 8-bit true color imagery also helps you discriminate large targets from small ones and enhances target separation. Rotation speeds of 24 and 48 rpm with a max range scale of 72 nautical miles. Features
- 4 kW high-definition radar with open array
- High sensitivity with 1.8 degree horizontal beamwidth for consistent target positions, excellent target separation and reliable operation
- Dual range radar with dual radar support
- No complex user settings; easy to install and start using
- Quiet rotation and reliable operation
Garmin Open Array xHD2 Series Specifications
Open Array 4 Foot |
|
| Physical dimensions | 4′ array: 52.25″” x 5″” x 6.75″” (132.7 x 12.7 x 17.1 cm)
Pedestal: 20.5″” x 12.75″” x 12.5″” (52 x 32.4 x 31.8 cm) |
|---|---|
| Weight | array: 12.2 lb (5.5 kg)
pedestal: 47.1 lb (21.4 kg) |
| Water rating | IPX6 |
| Power consumption | 55 W typical |
| Antenna length | 48″” (121.92 cm) |
| Rotation speed (RPM) | 24 and 48 rpm |
| Transmit power | 4 kW |
| Power input | 10-32 V |
| Beam width | 1.8° horizontal, 23° vertical |
| Maximum range | 72 nm |
| Minimum range | 20 meters |
| Radar type | Open-Array |
4 & 6 Foot Radars |
|
| High definition (outstanding target separation with less screen clutter) | Yes |
|---|---|
| MARPA target tracking (collision avoidance) | Yes (Requires Heading Sensor, Sold Separately) |
| Guard zone alarm | Yes |
[vc_column_inner width=””1/2
Open Array 6 Foot |
|
| Physical dimensions | Pedestal: 16.6″” x 14.3″” x 10.7″”
Pedestal: 42.1 x 36.4 x 27.1 cm Full assembly: 15.9″” height x 75.2″” diameter Full assembly: 40.3 cm height x 190.9 cm diameter |
|---|---|
| Weight | Array: 16 lb (7.3 kg)
Pedestal: 34.7 lb (15.7 kg) |
| Water rating | IPX6 |
| Antenna length | 72″” (182.9 cm) |
| Rotation speed (RPM) | 24 and 48 rpm (High Speed only available in Single Range mode, with MotionScope disabled, and on range settings of 12 NM or lower) |
| Transmit power | 120W power output, the approximate equivalent to a 15kW magnetron |
| Power input | 10-32 V |
| Beam width | 1.25° horizontal, 23° vertical |
| Maximum range | 96 nm |
| Minimum range | 6 meters |
| Radar type | Open-Array |
