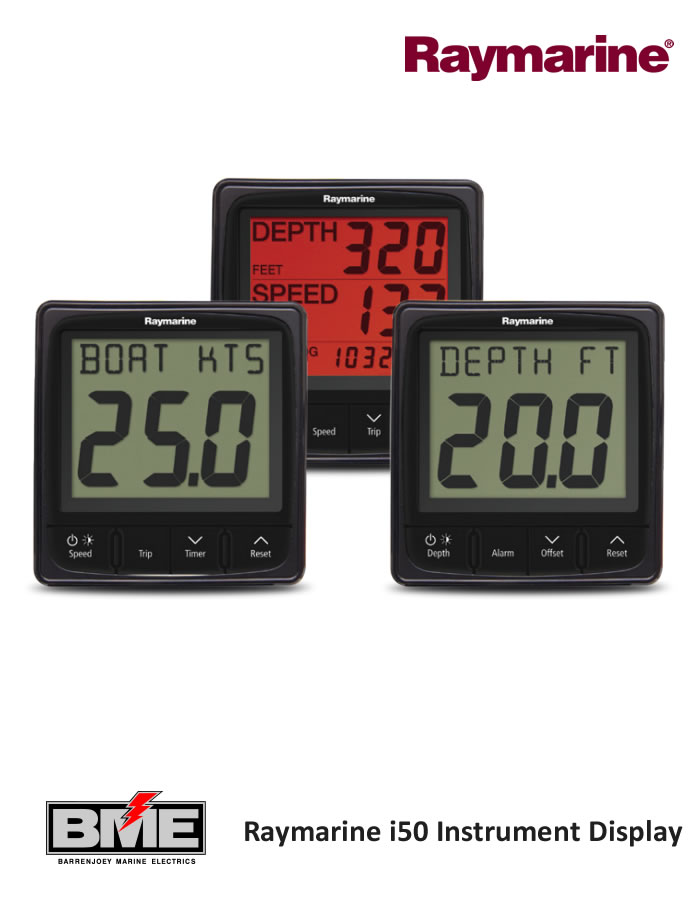

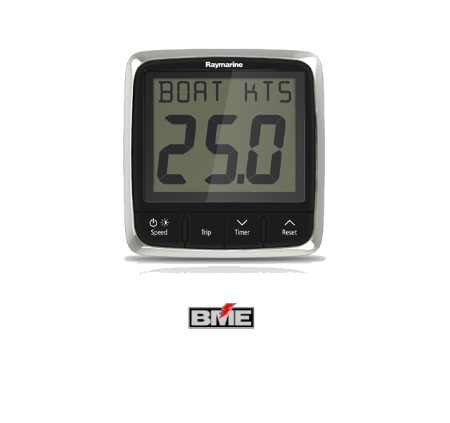

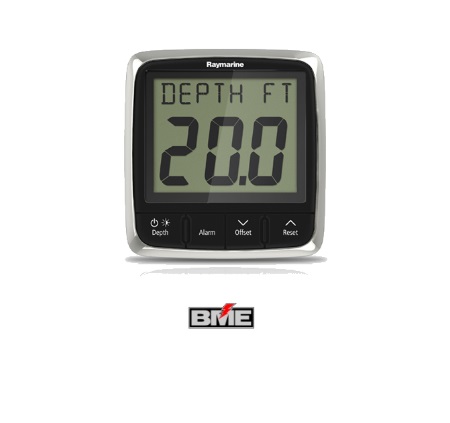

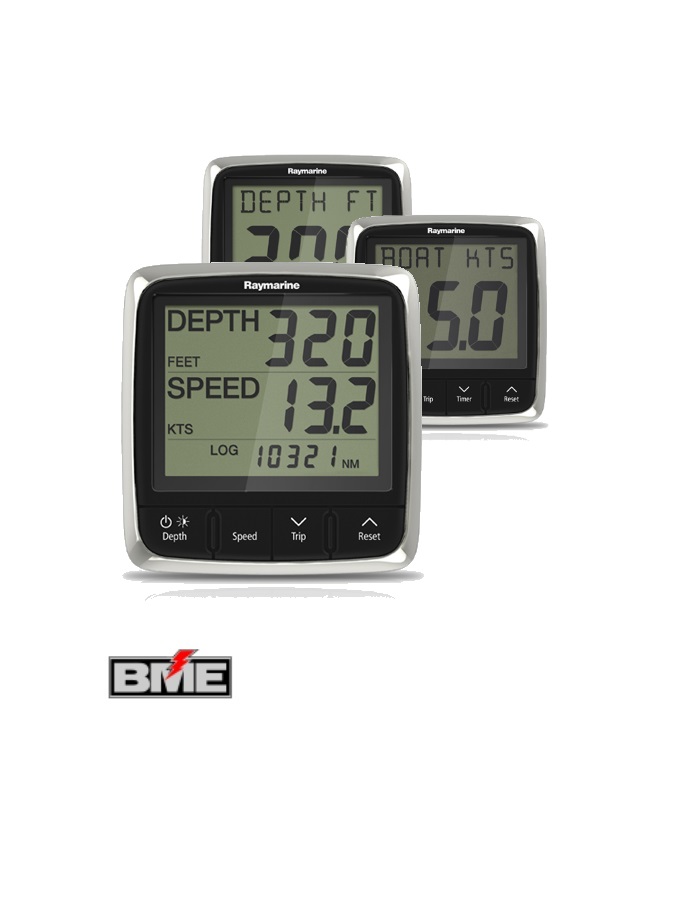

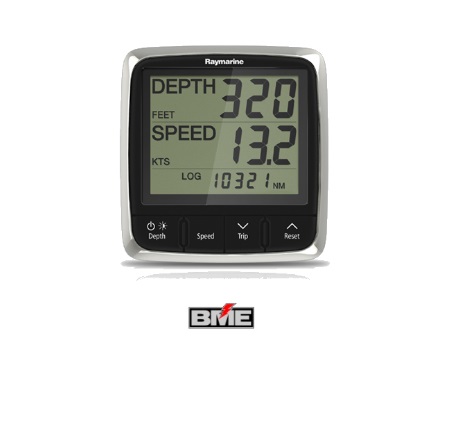

Raymarine i50 Instrument Displays The i50 instruments are designed to complement Raymarine’s latest generation multifunction displays. These stylish, dedicated-function instruments are the perfect solution for smaller power boats, yachts and RIBs. The i50 range consists of 3 digital displays: speed and depth displays with extra-large digits and a multi-line tridata unit.
Excellent viewing angles for both day and night conditions and simple, push-button controls make i50 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design.
i50 Instrument Display Features
- Large numerals and digits
- Red back lighting for enhanced night time visibility
- SeaTalk and SeaTalkng interfaces
- NMEA 2000 (compatible) interface
- Built-in transducer interface
- 110mm x 115mm footprint
- Low power consumption
- Multiple data source support eliminates potential data conflicts
- Front mounted design for simple installation

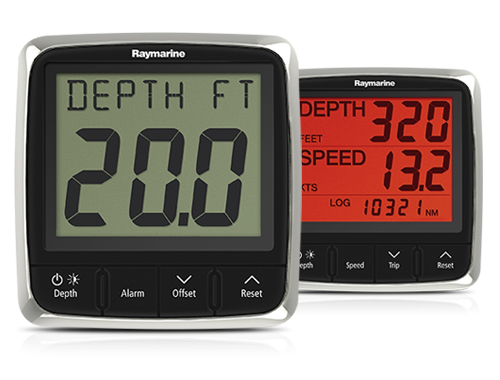

Raymarine i50 Instrument Displays Specifications
| Nominal Voltage | 12V DC |
| Operating Voltage Range | 10 – 16V DC |
| Power Consumption | typically <1W (display only) and 2.4W maximum with transducer connected |
| Current Consumption | 45 to 65mA (display only) and 200mA maximum with transducer connected |
| Operating Temperature range | -20ºC to +55ºC |
| Storage Temperature | -30ºC to +70ºC |
| Relative Humidity | up to 93% |
| Waterproofing standard | IPX6 |
| Connections | 2 x SeaTalkng and transducers Compatible with marine industry CAN systems |
| Conformance | Europe 2004/108/EC |
