Simrad IS35 Digital Gauge


Simrad IS35 Colour Instrument Display is designed to automatically display real-time data from NMEA2000 compatible engines and sensors, the Simrad IS35 provides boaters with at-a-glance access to critical information about their vessel.

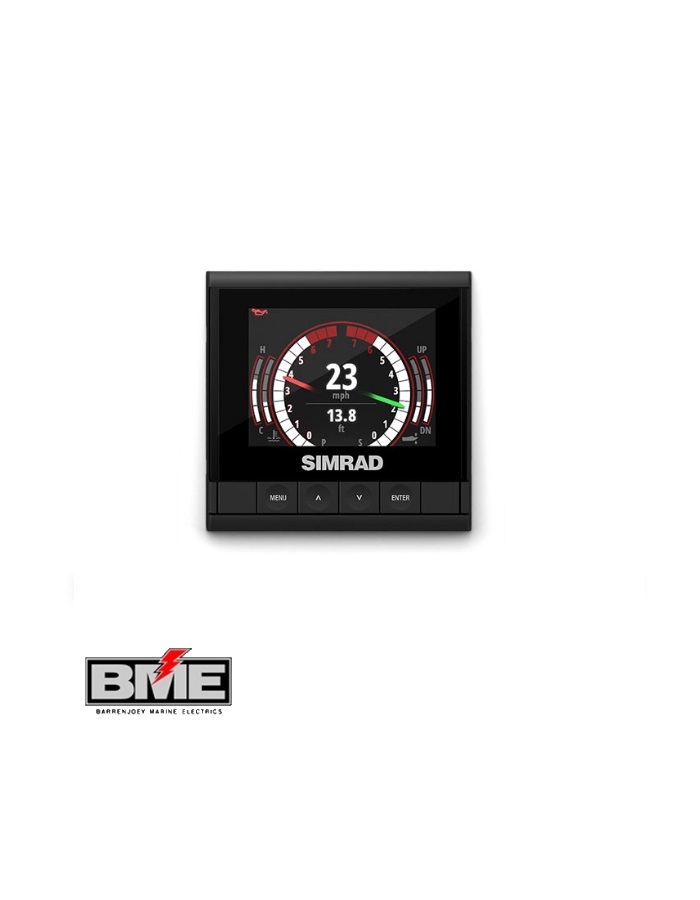

A powerful instrument for engine monitoring, fuel management and dynamic data display, the Simrad IS35 offers quick access to prioritised active data on a series of intuitive layouts. Pre-programed pages include engine data display, a dedicated cruising instrument, fuel economy with instantaneous fuel flow, fuel used and fuel remaining.

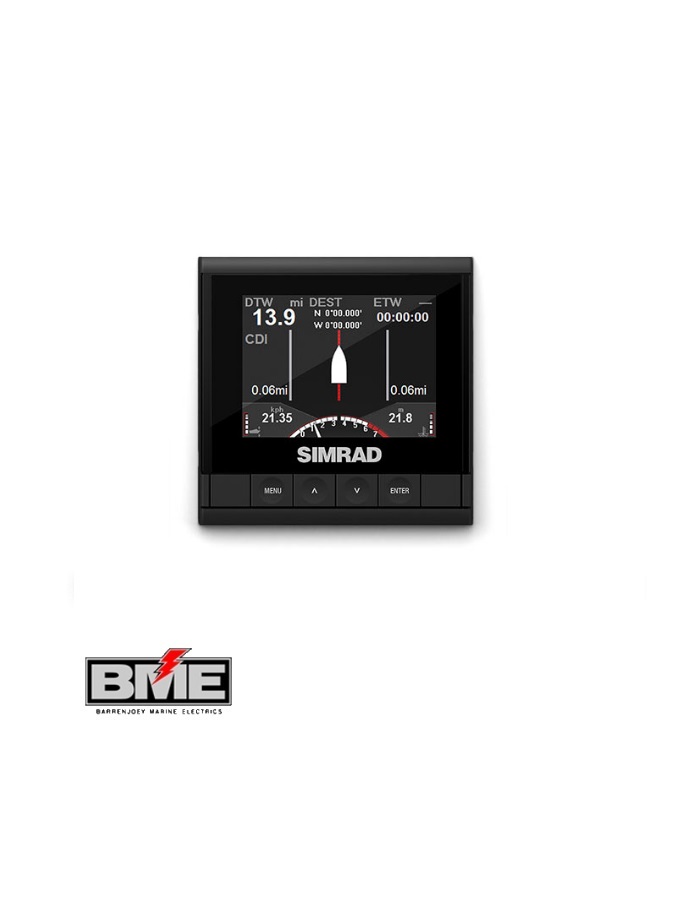

Boaters can also view motor steer with real-time Navigation information such as Waypoint position, time to destination, Current speed and RPMs, as well as depth history with Current and historic depth readings and water temperature. The user-configurable IS35 can also be easily customised with multiple layout options and built-in templates.


  • Bright, full-colour opticaly bonded LCD display
  • Simple button-driven menus
  • Automatically displays data from NMEA 2000 engines and sensors
  • Monitor up to two engines per gauge
  • Pre-set pages for engine monitoring, fuel economy, cruising, steering, and depth history
  • Easily customise pages
  • Stylish-low-profile design
  • Surface or flush-mount
  • Single-cable installation

Simrad IS35 Digital Gauge Specifications

  • Display Resolution: 320 x 240 (H x W)
  • Display Type: LED-backlit TFT-LCD
  • Display: Backlighting Color [text] Day (white) / Night (red)
  • Display Size: 88.9mm / 3.5″
  • Environmental Rating: IPX7
  • Operating Temperature: -15°C to 55°C (5°F to 131°F)
  • Product Width: 102mm (4.0”)
  • Product Depth: 122mm (4.8”)
  • Product Height: 99.7mm (3.9”)
    Product Weight: 0.28kg (0.60lb)
    Power Consumption: 130mA @ 13.5V
