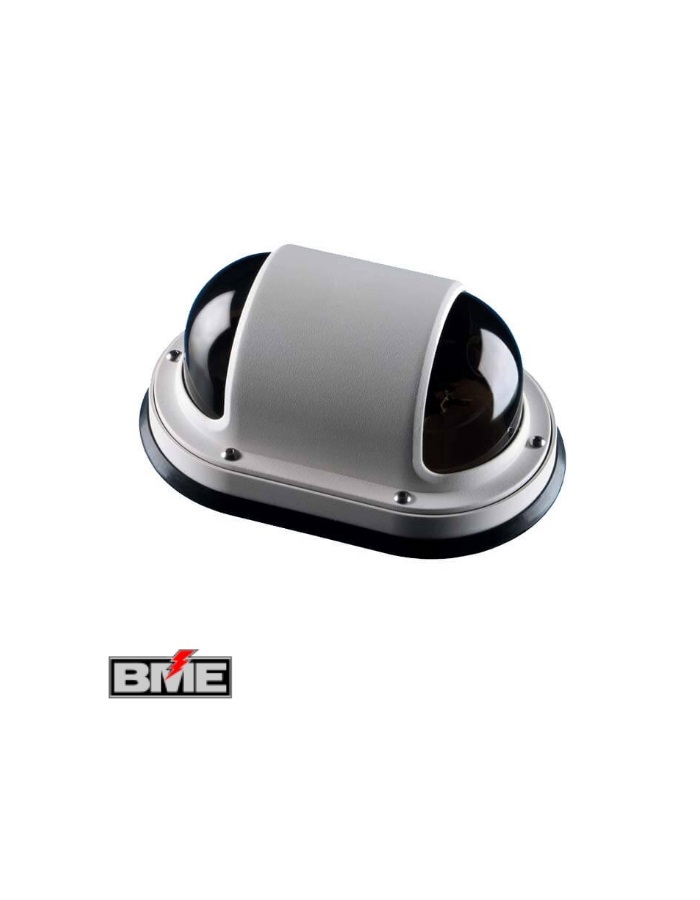

IRIS001 Twin Camera Module

IRIS001 Twin Camera Module

The IRIS001 is unlike any other marine camera on the market. In 2002 Iris set out to redefine the roll of on-board cameras and produce a docking camera system specifically for boats, as opposed to simply taking ugly and unsuitable domestic camera products that would inevitably not last any longer than the maiden voyage…

Inside the IRIS001 there are TWO miniature 3.6mm colour cameras, each mounted onto a three way fully adjustable bracket, in effect, providing a similar view as if the boat was fitted with “Chameleon’s eye”s” with cameras on both sides of the craft.

The camera housing sits on a rubber mounting boot to help cushion the vibration from the boats engines when manoeuvring and to provide protection to both the boats surface and the camera.

Initially conceived to be used in pairs with a quad switcher (IRIS604) so that the combined four cameras would display both port and starboard side aft and forward images, customers have also found the 001 to be the perfect solution to monitor wide aft deck areas or swimming platforms by mounting the camera sideways on. It’s also the perfect low profile solution for monitoring the comings and goings along companionways or walkways.

Features

• UV Stabilised White Toughened Polycarbonate Plastic Housing
• Each Housing Contains 2 Hi-Resolution Camera Modules
• Cameras Mounted on Adjustable Brackets for Manual Adjustment
• Extremely Low Power Consumption – 120mA
• Unique, Stylish Design
• Corrosion Free
• IP66 Waterproofing
• Available in PAL or NTSC Formats
• Available in Standard, Mixed or Mirror Configuration

Watch Promotional Video

IRIS001 Twin Camera Module Specifications

Pick Up Device: 1/3” Colour Sony SuperHAD 2 CCD
TV System: PAL / NTSC
Picture Elements: 752H x 582V
Horizontal Resolution: 540 TVL
Sensitivity: 1.0 Lux @ F1.2
Scanning System: 540 TVL / 2:1 Interlace
Synchronization: Internal
Infrared Spectrum: 850nm
S/N Ration: More than 50 db, (AGC Off)
Auto Gain: Correction Auto
White Balance: Auto
Electronic Shutter: Auto
Back Light Compensation: Auto
Day / Night: Available
Housing Material: Polycarbonate
Infrared Option: Not Available
Video Output: 1 V p~p, 75Ω composite, BNC x 2
Gamma Ratio: 0.45
Lens: f3.0mm Standard Lens (90˚HFOV)
Lens Mount: M12 x P0.5mm Thread
Power Supply: 12VDC ± 10%, ø2.1mm DC Jack
Power Consumption: 120mA
Dimensions: 140 x 88mm
Net Weight: 320g
Ingress Protection: IP66
Operating Temperature: -20˚C to +60˚C
