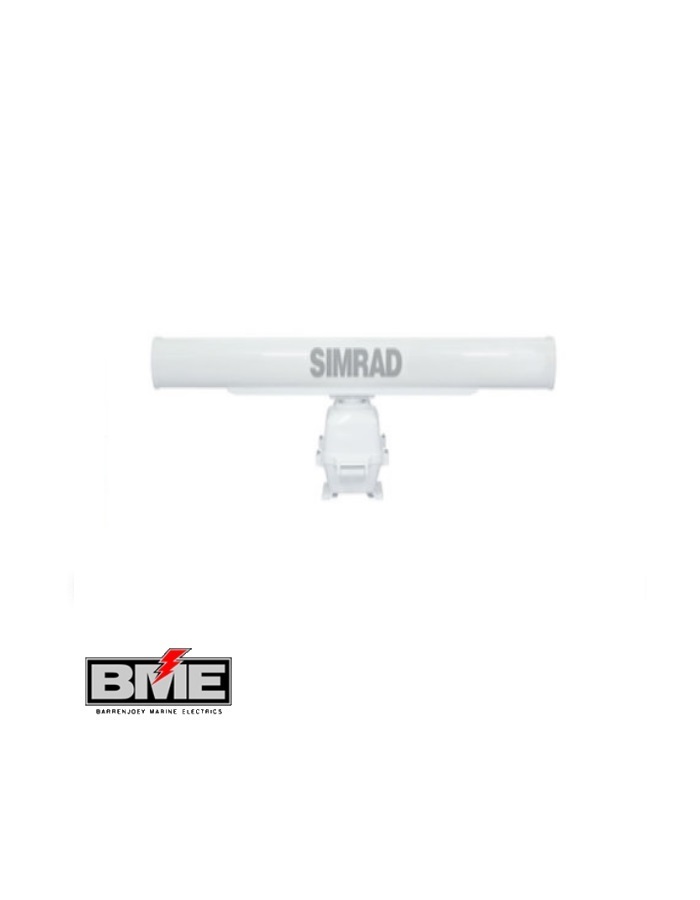

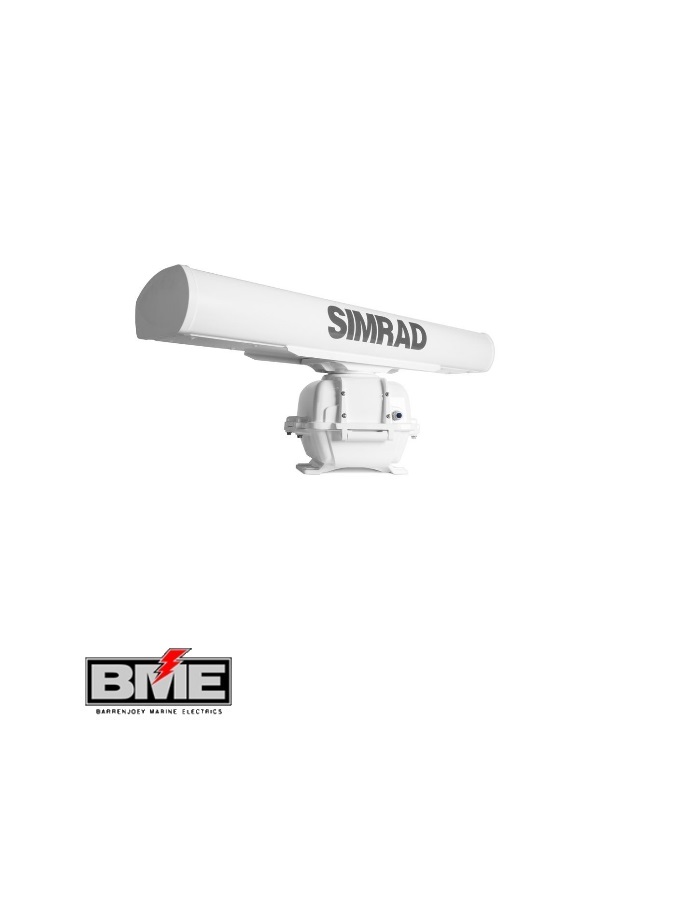

Simrad 6KW HD Radar


Our 6kW HD open array digital radar provides boaters with exceptional detection of small or distant targets using our advanced Digital Signal Processing technology.


High Definition Digital Radar means: Exceptional detection of small or distant targets, using advanced digital signal processing. Presents targets better and rejects clutter using 10-bit digital Sensitivity Time Control (STC). Screen-clutter from rough weather is cleared away using sensitivity settings tailored for specific conditions.


  • Radar/Chart Overlay – interfaces charts and radar detail in a single, detail-rich display when coupled with an optional
  • Clearest Viewing – Automatic Tune, Gain and Sea Clutter adjustments provide “hands off” operation in Harbour and Offshore Modes.
  • Smart STC – Digital Sensitivity Time Control curves reject clutter with setting of return strength/distance thresholds.
  • Color Recognition – Color palette choices for improved target distinction based on viewing conditions.
  • MARPA/Guard Zones – target tracking of up to 10 targets and dual guard zones.
  • NS series support MARPA target tracking and dual guard zones with these HD radars.
  • HD pulse radars are designed for boaters that go really far from land and want to see the details in weather cells

Simrad 6kW HD Radar Specifications

  • Product Height: 432 mm / 17 in
  • Product Weight: 24 kg / 52.9 lbs
  • Product Width: 344 mm / 13.5 in
  • Power Consumption: 120 W (Max)
  • Power Supply (Supply Voltage): 10.8 V – 42 V
  • Antenna Distance Range [nm]: 64
  • Antenna Horizontal Beam Width [deg]: 1.8 °
  • Antenna Output Power [kW]: 6
  • Antenna Receiver Noise Figure [dB]: 6
  • Antenna Rotation Speed: 27
