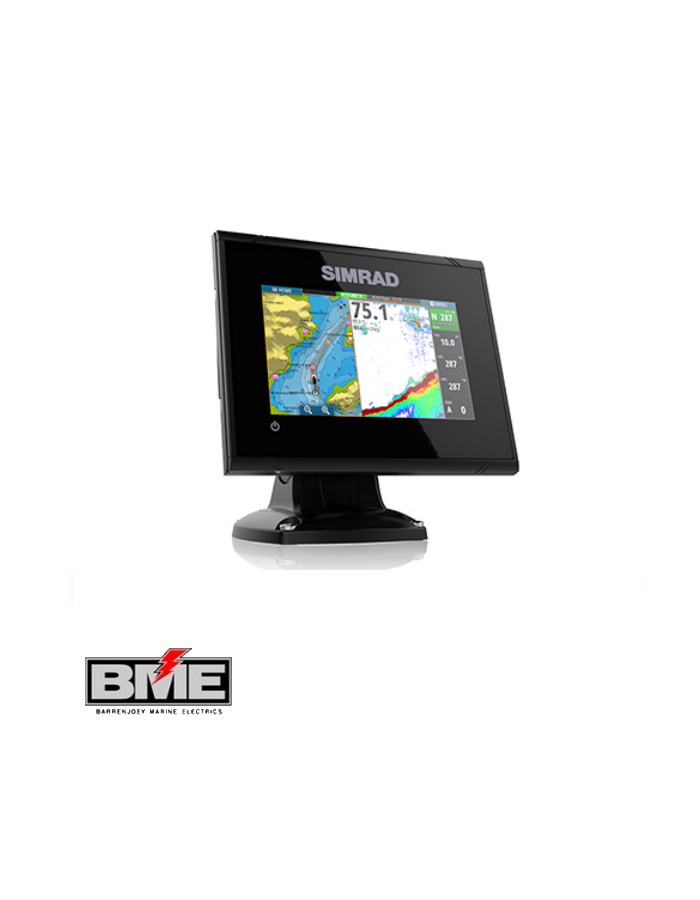

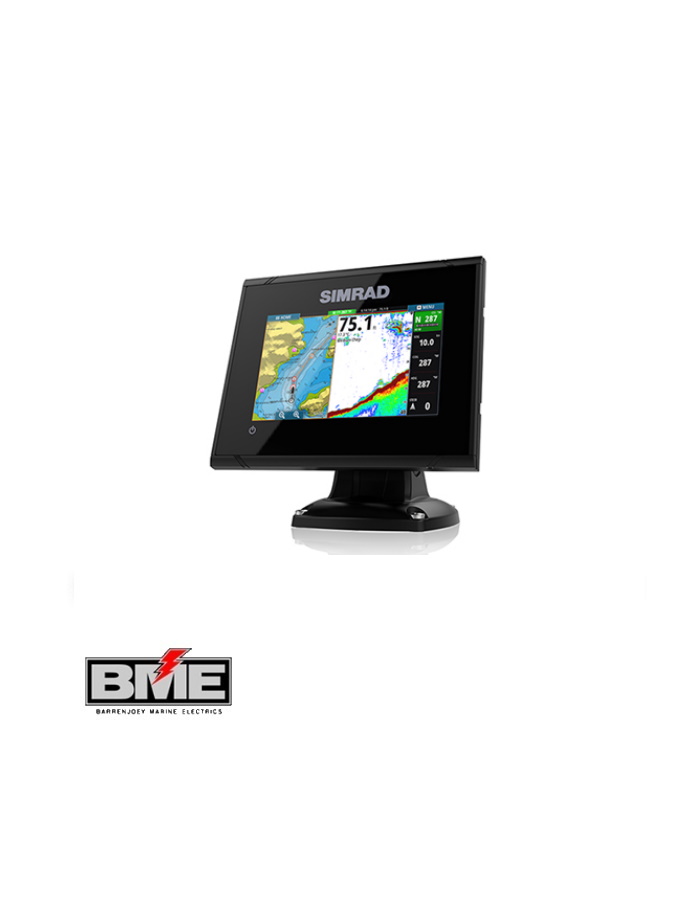

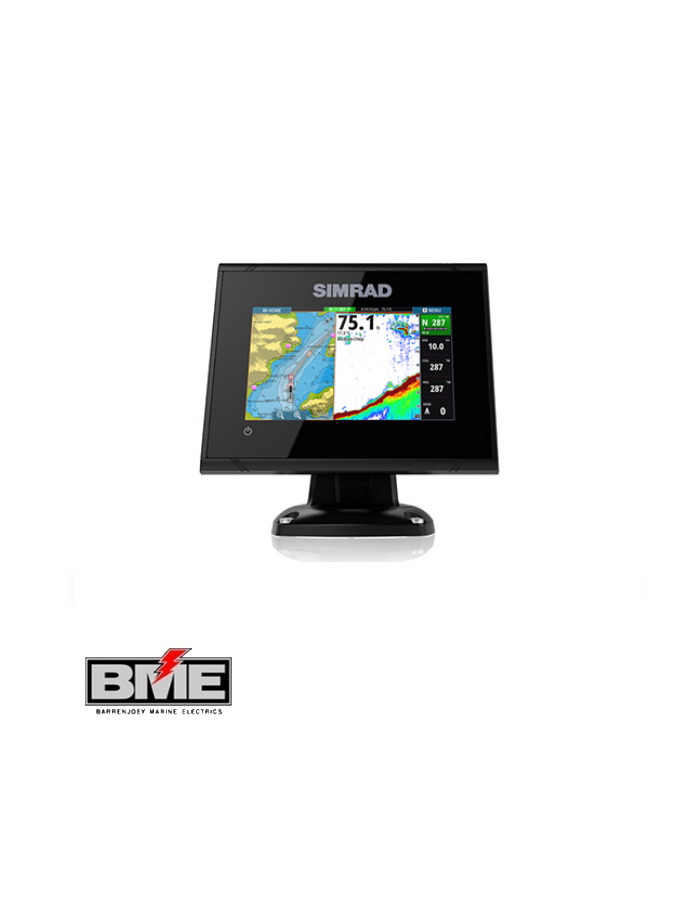

Simrad GO5 XSE Chatplotter

$1,026.68

Get more from every day on the water with the Simrad GO5 XSE, a perfect fit for compact sportboats and dayboats.

Clear
Description

Behind its super-bright touchscreen lies a chartplotter with built-in GPS receiver, and Wi-Fi access to the latest charts and updates. Control your onboard sound system, monitor engine data and more over NMEA 2000, and choose from an array of built-in sonar technologies: cruise with confidence using ForwardScan forward-looking sonar, or find fish like a pro with Broadband Sounder CHIRP sonar plus StructureScan HD SideScan and DownScan Imaging.

Features

  • Easy to use multi-touch interface
  • Full-featured chartplotter with widest available cartography support (Insight, Navionics, CMAP)
  • Includes worldwide basemap
  • Plan smarter with TripIntel™ technology
  • Support for Navionics Autorouting and Jeppesen Easy Routing
  • 5-inch flush or bracket mount display
  • Widescreen with bright LED backlight
  • High-speed 10 Hz GPS receiver
  • Built-in GoFree™ Wi-Fi
  • NMEA 2000 compatible

Simrad GO5 XSE Chatplotter Specifications


  • Display Type: WVGA Colour TFT LCD
  • Display Size: 5-inch Widescreen
  • Display Resolution [pixels x pixels]: 800 x 480
  • Backlighting Levels: LED / 1200 nits
  • GPS Antenna Type:  10 Hz built-in GPS
  • Operating Temperature: -15 °C to +55 °C (5 °F to 131 °F)
  • Waterproof Standard/rating: IPX7
  • Product Width: 152 mm / 5.98 in
  • Product Depth: 57.9 mm / 2.28 in
  • Product Height: 120 mm / 4.72 in
  • Product Weight: 0.54 kg / 1.18 lb
  • Power Consumption: 900 mA @ 13.5 V
  • Power Supply (Supply Voltage): 12 V DC
