Features
- Full transmit and receive AIS for enhanced situational awareness and safety
- Latest SO-TDMA technology for longer range and faster performance
- Built-in antenna splitter simplifies installation with existing VHF radio antenna
- NMEA2000, NMEA0183, PC (setup & diagnostics) and SeaTalkng compatible
- Software or hardware switchable Silent Mode for enhanced security when needed.

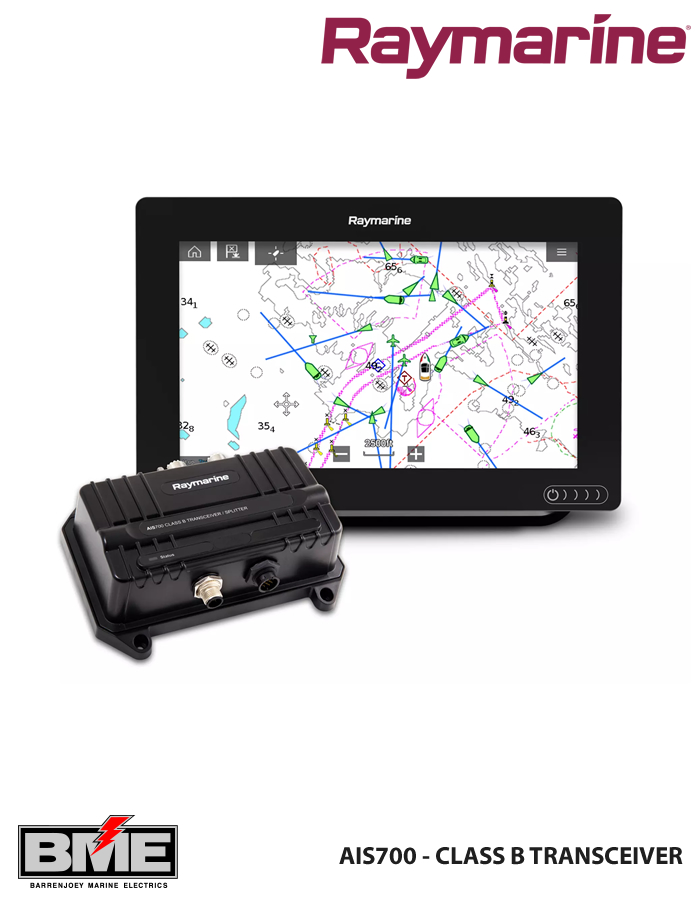

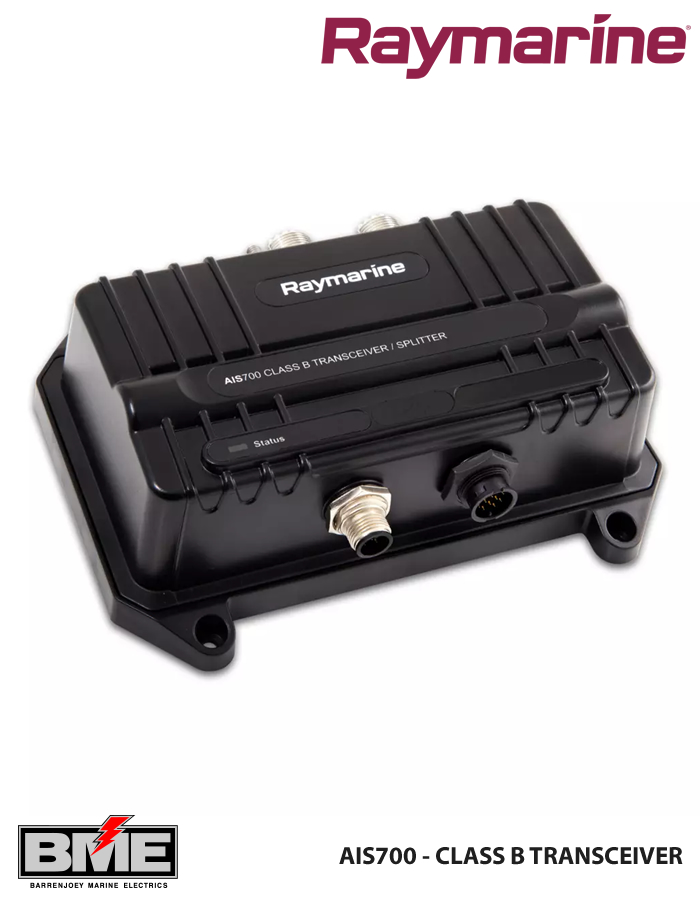

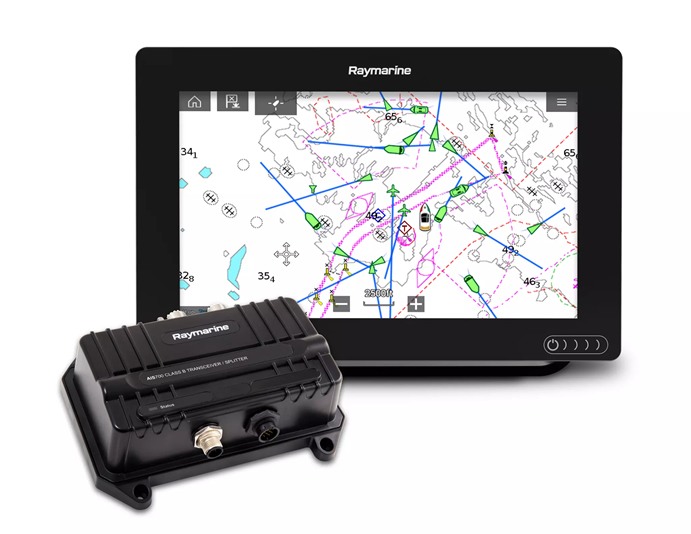

Raymarine AIS 700 Specifications
| Physical Specifications | |
|---|---|
| VHF antenna connection | SO-239 co-axial |
| VHF radio connector type | SO-239 co-axial |
| NMEA 0183 connection | Port 1 (MFD connection): HS (IEC 61162-1) compliant, bi-directional, RS422 levels, 4 wire interface (differential signalling), configurable baud rate, Port 2 (Instrument connection: (IEC 61162-1) compliant, bi-directional, RS422 levels, 4 wire interface (differential signalling), configurable baud rate |
| USB connection | Micro-B |
| Dimensions | Height: 132.55 mm (5.22 in), Width: 171.65 mm (4.81 in), Depth: 57 mm (2.24 in) |
| NMEA 2000 connection | DeviceNet connector |
| Silent mode switch connection | Bare-ended wires x 2 |
| GNSS antenna connector type | 50Ω TNC co-axial |
| AIS Specifications | |
|---|---|
| Operating frequency | Transmitting: 156.0MHz to 162.025 MHz, Receiving: 156.0MHz to 174.0 MHz |
| Class | B (transceiver) |
| AIS performance | 5 W SOTDMA |
| Channel spacing | 25 kHz |
| Receiver Qty | 2 |
| Transmitter Qty | 1 |
| GNSS (GPS) Specifications | |
|---|---|
| GNSS compatibility | GPS, GLONASS |
| Cold start acquisition | 26 seconds (nominal) |
| Channels | 72 |
| Environmental Specifications | |
|---|---|
| Relative humidity | Up to 93% @ 40°C (104°F) |
| Waterproof rating | IPx6, IPx7 |
| Storage temperature | -20°C to +75°C (-4°F to 167°F) |
| Operating temperature | -15°C to +55°C (5°F to 131°F) |
| Power Specifications | |
|---|---|
| Operating voltage range | 9.6 V dc to 31.2 V dc |
| Power consumption | 3 W |
| Fuse rating | 3 A |
| Peak current @ 12 V dc | 2.5 A |
| Nominal supply voltage | 12 V dc / 24 V dc |
| Peak current @ 24 V dc | 1.25 A |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
