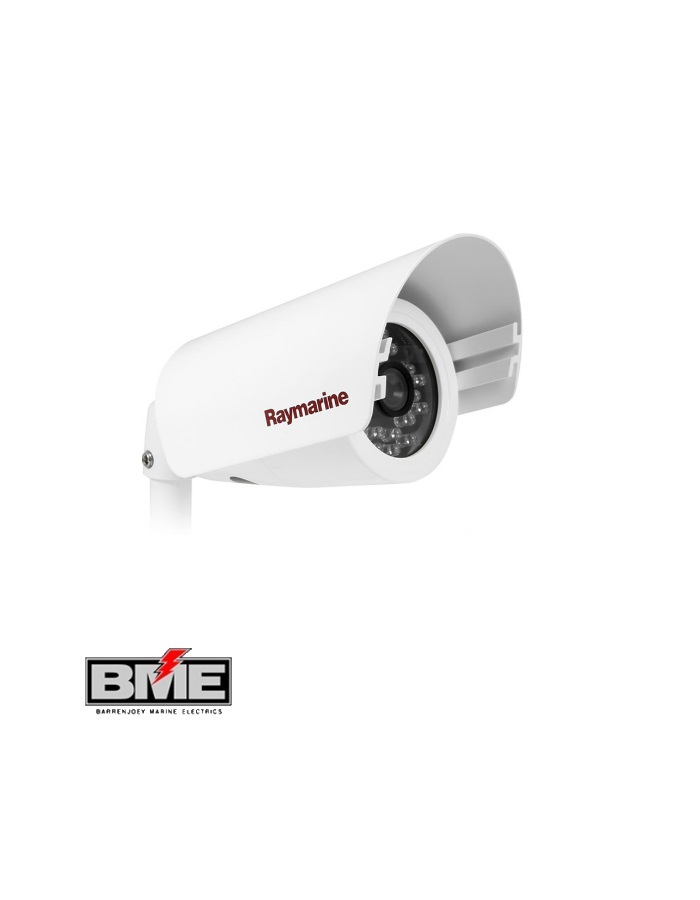

Raymarine CAM210 Day and Night IP Video Camera

Raymarine CAM210 Day and Night IP Video Camera Ruggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat. Features

• Plug and play integration with Raymarine MFD’s running Lighthouse II
• Power over Ethernet (PoE) or direct 12v DC power supply
• High bright IR LEDs for operation in total darkness
• Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke)
• Intelligent IR technology for clear video images at night in all conditions

Raymarine CAM210 Day and Night IP Video Camera Specifications

---



Camera

• Image Sensor: 2.0 Megapixel 1/2.8″” SONY progressive scan
• CMOS(Exmor)
• Total Pixels: 1952(H) x 1116(V) 2.18 Megapixel
• Effective Pixels: 1944(H) x 1104(V) 2.15 Megapixel
• S/N Ratio: More than 50dB
• Minimum Illumination: 0Lux (IR On)
• IR Distance: 20m
• Day & Night: ICR
• Lens: 6.0mm Megapixel Board Lens
• Field of View: Diagonal = 63.6 deg +/- 3 deg
• Horizontal = 53.3 deg +/- 3 deg
• Vertical = 33.1 deg +/- 3 deg

  Video

• Video Compression: H.264 High Profile@4.0, MJPEG –Image quality: 3 Steps
• Resolution: Up to 1920 x 1080 (Full HD)
• Frame Rate: H.264 Up to 30fps with 1920×1080 | MJPEG Up to 30fps with VGA resolution
• Video Streaming: Support multi stream with H.264, MJPEG,
• Adjustable frame rate, CVBR/CBR in H.264
• Image Setting: Day & Night, Auto White Balance, Auto Exposure,
• Privacy Mask, Effects – Colour, Sharpness, Mirror / V-Flip

System Integration

• Security: Password protection, User access log, HTTPS encryption
• Supported Protocol: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP
• Intelligent Video: Motion detection up to 1920×1080 with 4×3 blocks

  Physical

• Power Source: DC12V/1.5A, PoE(Power over Ethernet): 802.3af
• Power Consumption: Max. 3.3W, Max. 5.3W with IR
• Net Weight: 900g
• LED’s: Power, Network Connection
• Dimensions: 83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket
• General Operation Temperature: 0 degree~40 degree
• Storage Temperature: -10 degree~50 degree Celsius(14F~122F)
