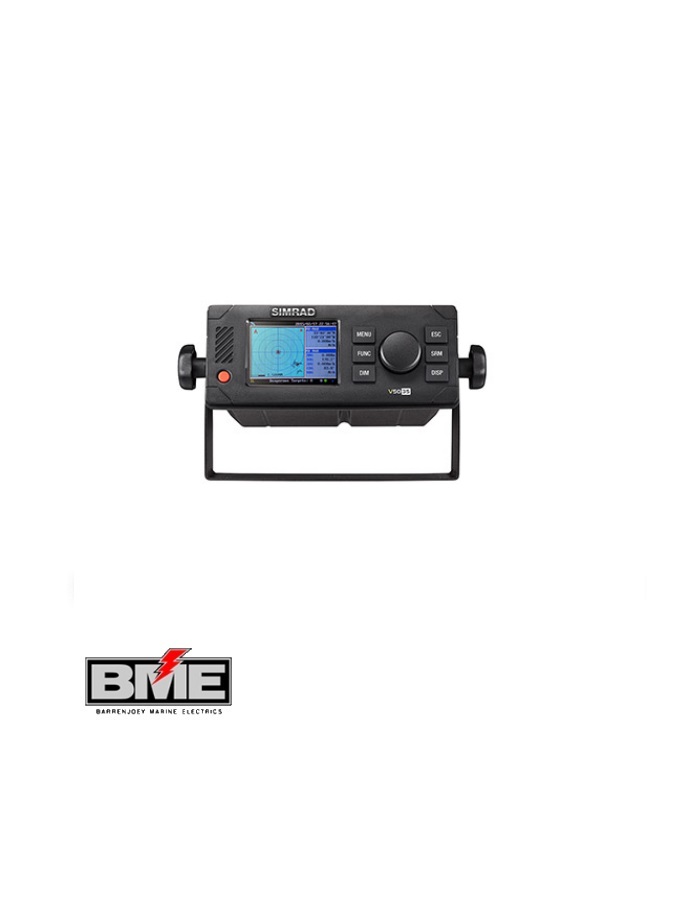

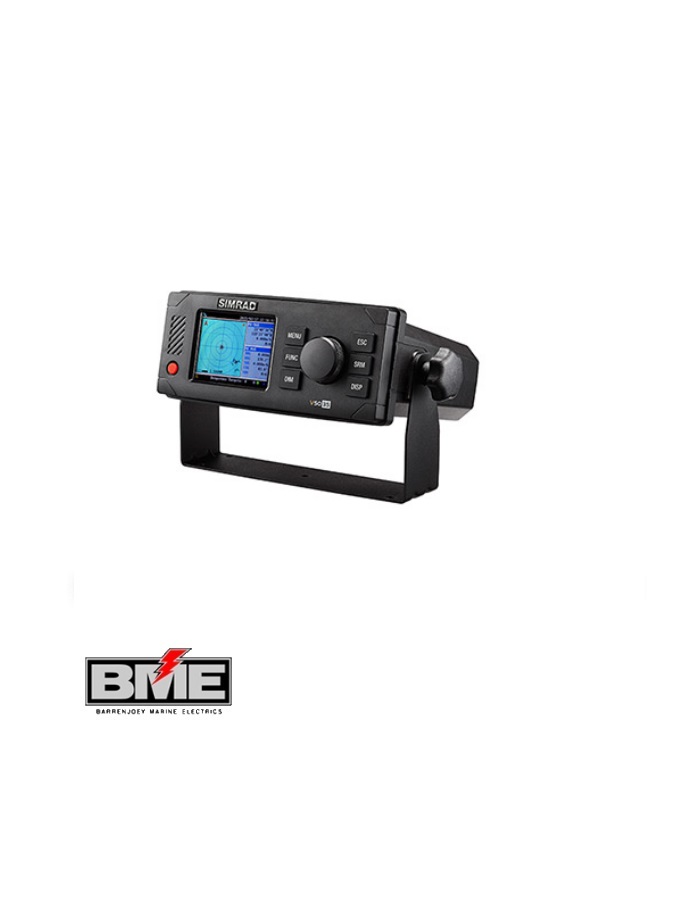

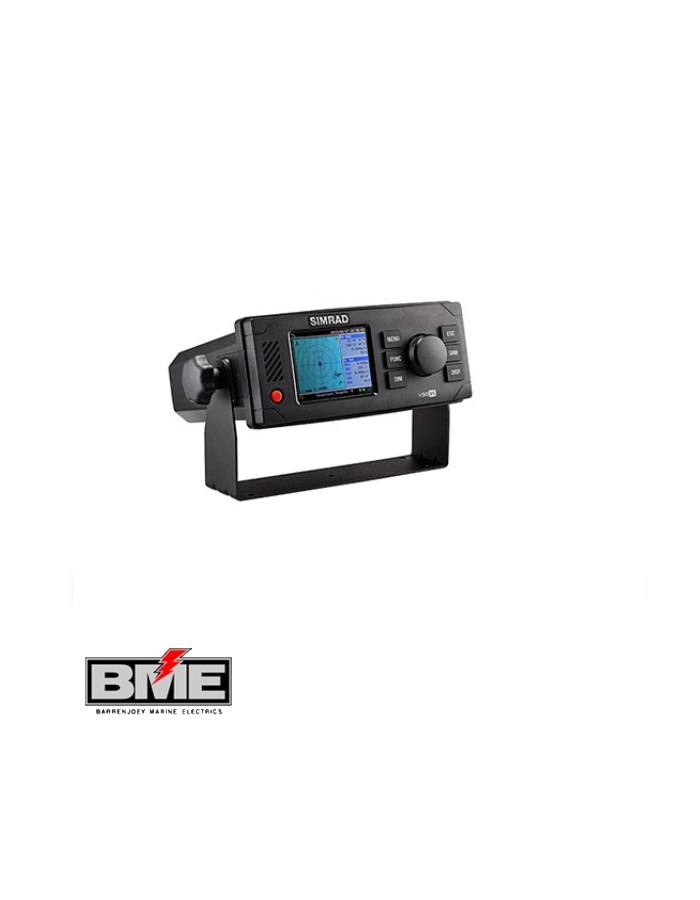

The Simrad V5035 is a fully featured Class-A AIS transponder system, IMO type approved for use aboard SOLAS vessels. As a standalone solution with integrated display and included GPS antenna, junction box, and pilot plug assembly, the V5035 cost-effectively delivers a complete solution.
Features
- IMO type approved Class-A AIS transponder
- Integrated 3.5-inch colour LCD
- Rotary dial knob and keypad for easy operation
- Basic-coastline, radar, alphanumeric (text), and satellite display modes
- Includes NMEA 0183/2000 junction box, GPS antenna, pilot plug assembly, cables and mounting hardware
- Multiple sensor input ports and bi-directional data ports
- Connects to Simrad GN70/MX610/MX612 navigation systems and E5000-series ECDIS
Simrad V5035 Class-A AIS Specifications
- Display: Backlighting
- Display Type: 3.5-inch Colour TFT LCD
- Display Resolution [pixels x pixels]: 320 x 240
- Connectors: VHF Antenna Connector (SO-239 Female), Sensor Interfaces 1 to 3 (IEC 61162-1 or -2), Pilot/Auxiliary (IEC 61162-2), External Display (IEC 61162-2), Long-range (IEC 61162-2), DGNSS correction
- input (RTCM-SC-104), Alarm Output (Relay contact)
- NMEA Output: NMEA 2000 (IEC 61162-3)
- Specified Standards: IMO Resolution A.694(17), IMO Resolution MSC.74(69) Annex 3, IMO Resolution MSC. 191(79), ITU-R M 1371-4 (Class A), 2010, ITU-R M 825-3, 1998, ITU-R M 1084-5, 2012, IEC 61993-2
- Ed. 2.0, 2012, IEC 61108-1 Ed. 2.0, 2003, IEC 60945 Ed. 4.0, 2002 incl. Corr. 1 2008, IEC 61162-1 Ed. 4.0, 2010, IEC 61162-2 Ed. 1.0, 1998, IEC 62288 Ed. 2.0, 2014
- Power Consumption: < 9 W average @ 12 VDC, < 65 W peak power @ 12 VDC
- Power Supply (Supply Voltage): 12 / 24 V DC
- Waterproof Standard/rating: IPX2
- Product Width: 205 mm (8.07 in)
- Product Depth: 173 mm (6.81 in) without connectors
- Product Height: 85 mm (3.35 in)
- Product Weight: 1.16 kg (2.56 lb)
- Operating Temperature: -15°C to 55°C (-59°F to 131°F)
