Furuno HD Colour Marine LCD Displays

$7,750.00$8,811.00

The FURUNO MU190HD & MU150HD range is a multi-purpose marine LCD that features the unmatched quality and reliability that you have learned to depend on.

Clear
SKU: N/A Categories: , Tag: Brand:
Description

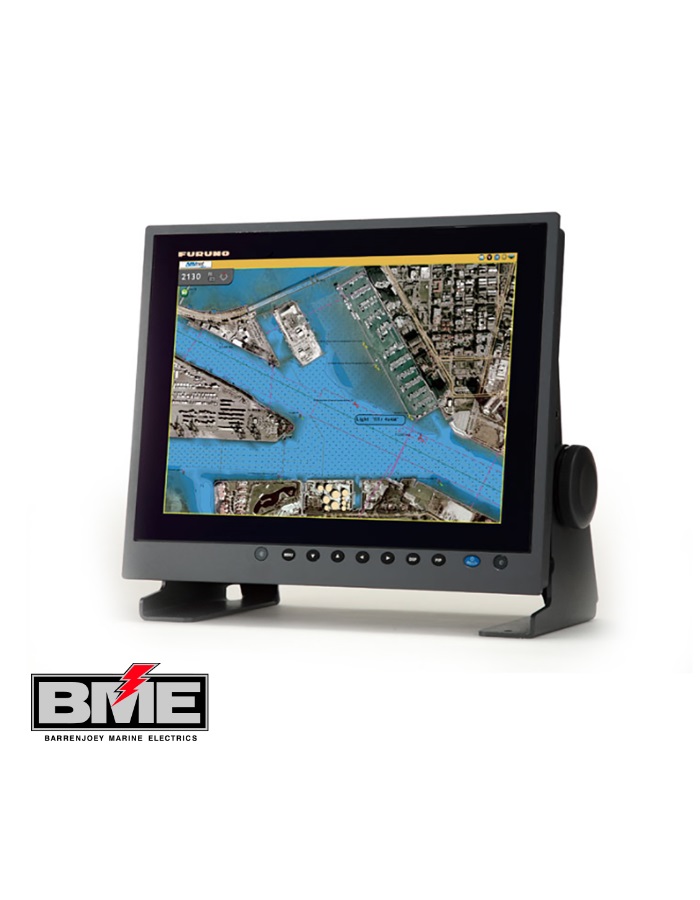

Furuno HD Colour Displays

The FURUNO MU190HD & MU150HD is a multi-purpose marine LCD that features the unmatched quality and reliability that you have learned to depend on. The MU190HD / MU150HD employs an extremely bright (1,000 cd/m2 ) color TFT LCD with special AR (anti-reflective) glass filter to cut down on annoying glare. With its bright colors, excellent contrast and wide viewing angles, the MU190HD monitor is perfect for any tropical sunlight or low light conditions. Furthermore, the LCDs and the glass are bonded together ensure fog free operation on open fly-bridge installations.

The MU-190HD features SXGA (1280 x 1024) screen resolution and a wide range of interface options available that include: 1 RGB analog, 2 DVI (Digital Video Interface) and 3 NTSC/PAL video inputs. The display may be used as either the main or remote display for a variety of marine equipment, such as Black Box Radar, Sounder, Sonar, or NavNet series. The unit can also display images from security cameras, DVD player, computers, or other peripheral video devices.

The MU150HD features XGA (1024 x 768) screen resolution, with a built-in scaler to accept resolution up to SXGA (1280 x 1024). It’s wide range of interface options include: 1 RGB analog, 2 DVI (Digital Video Interface) and 3 NTSC/PAL video inputs. The display may be used as either the main or remote display for a variety of marine equipment, such as Black Box Radar, Sounder, Sonar, or NavNet series. The unit can also display images from security cameras, DVD player, computers, or other peripheral devices.

Features

MU190HD Standard Features:

  • Crystal clear 19″ marine grade monitor for use as main or remote display
  • 1280 x 1024 SXGA Screen Resolution
  • 1,000 cd/m2 brightness and A/R coating provides superior visibility even in direct sunlight
  • Bonded LCD provides clear view in any weather conditions
  • Automatic dimmer sensor adjusts the display brightness as light conditions change
  • 1 RGB analog, 2 DVI (Digital Video Interface) and 3 NTSC/PAL interfaces available
  • Any of the three NTSC inputs are PIP (Picture-In-Picture) capable, with adjustable size and screen location
  • Table top/Ceiling or Flush Mount (Table Top/Ceiling mounting bracket is optional)
  • Customizable input names for easy on-the-fly identification and switching between onboard Radar, Sonar, Sounder, Camera, etc.
  • Automatic signal recognition and scaling for easy setup and installation



MU150HD Standard Features:

  • Crystal clear 15″ marine grade monitor for use as main or remote display
  • 1024 x 768 XGA Screen Resolution
  • Built-in scaler accepts up to SXGA (1280 x 1024) resolution
  • 1,000 cd/m2 brightness and A/R coating provides superior visibility even in direct sunlight
  • Bonded LCD provides clear view in any weather conditions
  • Automatic dimmer sensor adjusts the display brightness as light conditions change
  • 1 RGB analog, 2 DVI (Digital Video Interface) and 3 NTSC/PAL interfaces available
  • Any of the three NTSC inputs are PIP (Picture-In-Picture) capable, with adjustable size and screen location
  • Table top/Ceiling or Flush Mount (Table Top/Ceiling mounting bracket is optional)
  • Customizable input names for easy on-the-fly identification and switching between onboard Radar, Sonar, Sounder, Camera, etc.
  • Automatic signal recognition and scaling for easy setup and installation

Furuno HD Colour Displays Specifications


  • Display unit: 15″ COLOR LCD
  • Screen Resolution: 1024 x 768 (XGA)
  • Contrast: 600:1
  • Viewing Angle (Vertical) up/down 80°or more – (Horizontal) left/right 80°or more
  • Screen Brightness: 1000 cd/㎡
  • Interface: Analog RGB (D-SUB/15 pins): 1 port
  • DVI-D: 2 ports
  • Composite Video (NTSC/PAL): 3 ports
  • Temperature: −15 ℃ to +55 ℃
  • Waterproofing: IP56 (front panel), IP22 (rear panel)
  • Power Supply: 12-24 VDC, 4.5 – 2.2 A
  • Weight Flush mount: 5.4 kg
  • Bracket mount: 7.4 kg
  • Display unit: 19″ COLOR LCD
  • Screen Resolution: 1280 x 1024 (SXGA)
  • Contrast: 900:1
  • Viewing Angle (Vertical) up/down 80°or more – (Horizontal) left/right 80°or more
  • Screen Brightness: 1000 cd/㎡
  • Interface: Analog RGB (D-SUB/15 pins) 1 port
  • DVI-D: 2 ports
  • Composite Video (NTSC/PAL): 3 ports
  • Temperature: −15 ℃ to +55 ℃
  • Waterproofing: IP56 (front panel), IP22 (rear panel)
  • Power Supply: 12-24 VDC, 8.4 – 3.9 A
  • Weight: Flush mount: 8.2 kg
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Furuno HD Colour Marine LCD Displays”
About Furuno
Furuno was founded in Nagasaki, Japan in 1938 and has subsidiaries in the USA, Europe and China. Furuno Electric Co., Ltd. is a Japanese electronics company whose main products are marine electronics, including radar systems, fish finders and navigational instruments. The company also manufactures global positioning systems, medical equipment and meteorological monitoring and analysis systems.
