Furuno MU-190HD 19″ High Definition Colour Marine LCD Display

$10,920.25

Need a bright idea?
How about using FURUNO marine grade monitors in your helm!

Brand

Furuno

Clear
SKU: N/A Category: Brand:
Description

Description

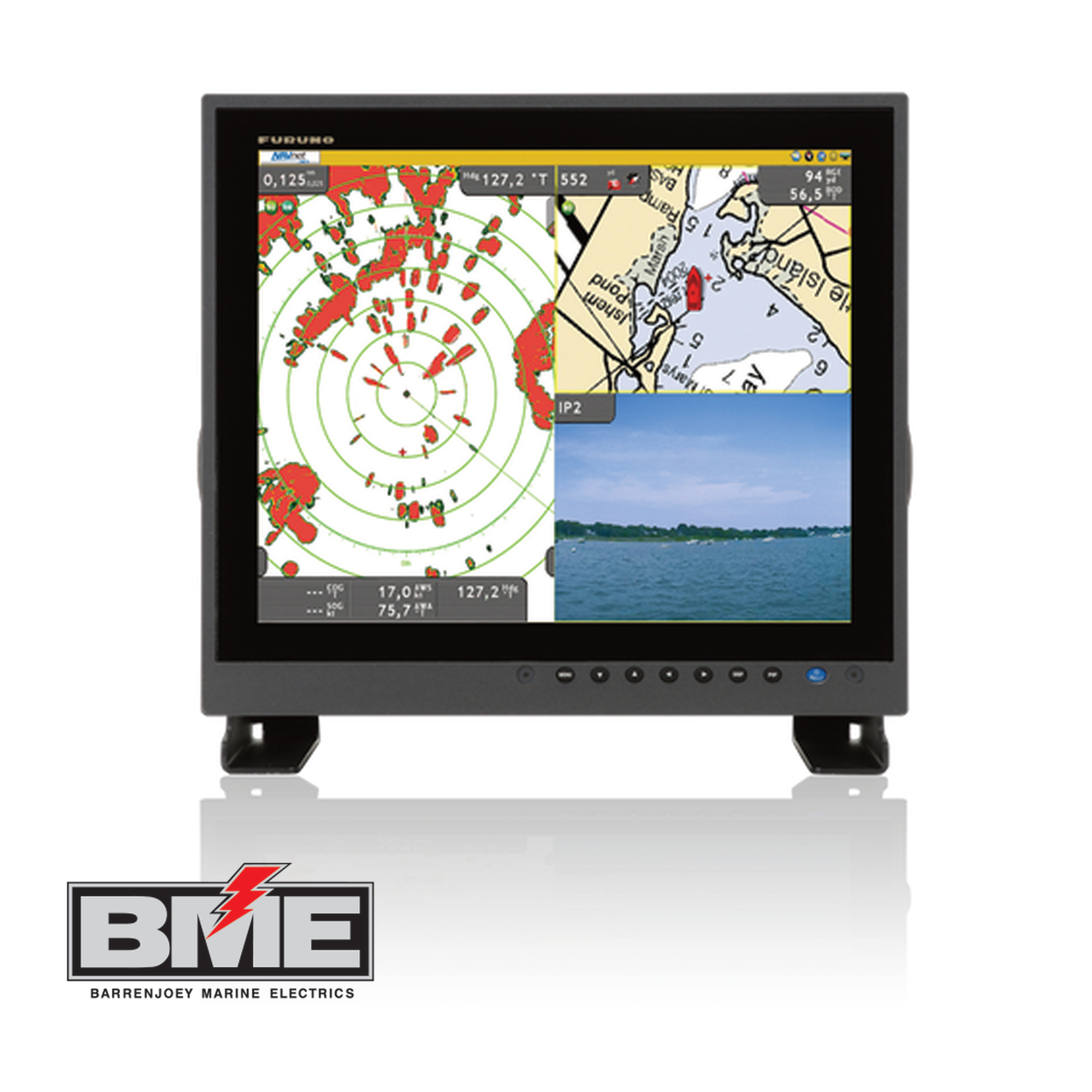

Furuno MU-190HD 19″ High Definition Colour Marine LCD Display – flange mount

PART ID: 195231

Need a bright idea?
How about using FURUNO marine grade monitors in your helm!

Bonded LCD provides clear view in any weather conditions

The FURUNO MU190HD is a multi-purpose marine LCD that features the unmatched quality and reliability that you have learned to depend on. The MU190HD employs an extremely bright (1,000 cd/m2 ) color TFT LCD with special AR (anti-reflective) glass filter to cut down on annoying glare. With its bright colors, excellent contrast and wide viewing angles, the MU190HD monitor is perfect for any tropical sunlight or low light conditions. Furthermore, the LCDs and the glass are bonded together ensure fog free operation on open fly-bridge installations.

The MU-190HD features SXGA (1280 x 1024) screen resolution and a wide range of interface options available that include: 1 RGB analog, 2 DVI (Digital Video Interface) and 3 NTSC/PAL video inputs. The display may be used as either the main or remote display for a variety of marine equipment, such as Black Box Radar, Sounder, Sonar, or NavNet series. The unit can also display images from security cameras, DVD player, computers, or other peripheral video devices.



Features

  • Crystal clear 19″ marine grade monitor for use as main or remote display
  • Resolution: 1280 x 1024 SXGA
  • Built-in scaler allows accepting up to SXGA (1280 x 1024) resolution
  • 1,000 cd/㎡ brightness and A/R coating provides superior visibility even in direct sunlight
  • Bonded LCD provides clear view in any weather conditions
  • Automatic dimmer sensor adjusts the display brightness as light conditions change
  • 1 RGB analog, 2 DVI (Digital Video Interface) and 3 NTSC/PAL interfaces available
  • Any of the three NTSC inputs are PIP (Picture-In-Picture) capable, with adjustable size and screen location
  • Table Top/Ceiling or Flush Mount (Table Top/Ceiling mounting bracket is optional)
  • Customizable input names for easy on-the-fly identification and switching between onboard Radar, Sonar, Sounder, Camera, etc.
  • Automatic signal recognition and scaling for easy setup and installation

Furuno MU-190HD Specifications


General

  • Display unit: 19″ COLOR LCD
  • Screen Resolution: 1280 x 1024 (SXGA)
    *Resolution from VGA to SXGA are accepted
  • Contrast: 900:1
  • Viewing Angle: (Vertical) up/down 80°or more
    (Horizontal) left/right 80°or more
  • Screen Brightness: 1000 cd/㎡
  • Interface: Analog RGB (D-SUB/15 pins): 1 port
    DVI-D: 2 ports
    Composite Video (NTSC/PAL): 3 ports
  • Temperature: −15 ℃ to +55 ℃
  • Waterproofing: IP56 (front panel), IP22 (rear panel)
  • Power Supply: 12-24 VDC, 8.4 – 3.9 A
  • Weight: Flush mount:8.2 kg
